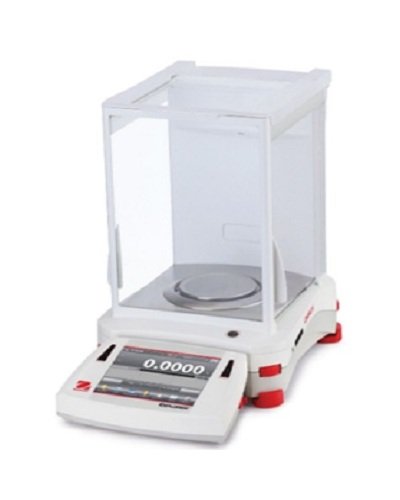

The Explorer EX224N Analytical Balance is engineered for precision weighing with advanced features tailored for exceptional performance. Equipped with NTEP certification, this model ensures compliance with national standards. The balance boasts optimized linearity, enhanced stability through vibration filtering, and AutoCal™ automatic internal calibration for improved accuracy. Its large color touch-screen display, icon-driven software with 14 unique application modes, and touchless sensors make it the most advanced choice in its class. With a robust construction and versatile design, including a draftshield with top and side doors, this analytical balance offers ease of use and reliable results for diverse weighing needs.
Product Specifications
Options Accessories
[12122603] - Cable, RS9 M/F, 1.5 m | [30064203] - Printer, Impact, SF40A, AM | [30078078] - Cable, RS422, 9m, EX EX-HiCap | [30093334] - Dust Cover, Balance with Draft Shield | [80251396] - Auxiliary Displays, PAD7, PA AX EX | [80251992] - Printer, Thermal, STP-103, US | [80252571] - Cable, RS232, CBM910-AV DV EX MB TxxP | [80253384] - Density Kit, Solids | [80500525] - Cable, RS232, IBM 9P, AV DV MB Ranger | [80500572] - Adapter, 25 Pin-9 Pin, SF42 SRP275 | [80850043] - Anti-Theft Device, MB AX EX | [80850080] - Software, Winwedge | [83021081] - RS232 Kit, 2nd, EX EX-HiCAP | [83021082] - Ethernet Kit, EX EX-HiCap | [83021083] - Cable, RS422,Extension, EX EX-HiCap | [83021085] - Cable, USB, Type A-B | [83021086] - Foot Switch Kit, EX EX-HiCap | [83033633] - In-Use Cover, Terminal, EX
Specifications Applications
Checkweighing | Density Determination | Differential Weighing | Dynamic/Animal Weighing | Filling | Formulation | Ingredient Costing | Parts Counting | Peak Hold | Percent Weighing | Pipette Adjustment | Statistical Quality Control (SQC) | Totalization | Weighing
Specifications Auto Door
No
Specifications Capacity
220 g
Specifications Certified Readability
1 mg
Specifications Communication
Easy access communication ports including standard USB and RS232 and an optional third port of either RS232 or Ethernet. Good Laboratory Practice (GLP)/Good Manufacturing Practice (GMP) Data Output with Real Time Clock. Data Transfer Function.
Specifications Construction
Acrylonitrile Butadiene Styrene (ABS) display housing | Acrylonitrile Butadiene Styrene (ABS) top housing | AD models include motorized side doors | Draftshield with top mounted side doors and flip or sliding glass panel top door | Metal base | Replaceable in-use cover | Stainless steel pan
Specifications Design Features
Auto standby | AutoCal⢠fully-automatic internal calibration system | Certified models available | Fast stabilization time | Four touchless sensors, up to 13 operating languages | Integral weigh below hook for below balance weighing applications | Menu lock switch | Overload and underload indicators | Removable stainless steel weighing pan | Security bracket | Stability indicator
Specifications Display
4-wire resistive touch screen | Full-color Video Graphics Array (VGA) graphic display (5.7 in. / 14.0 cm diagonal) | Virtual QWERTY keyboard and numeric keypad to quickly input Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) data and other application data.
Specifications Operation
AC Adapter (included)
Specifications Pan Diameter
3.5 mm | 90 mm
Specifications Readability
0.1 mg
