Explosion-Proof 4mm Diameter Industrial Borescope Videoscope-XT
Explosion-Proof 4mm Diameter Industrial Borescope Videoscope-XT
SKU:IND-6e0f56
Cutting-edge 4mm Explosion-Proof Industrial Borescope Videoscope-XT for precise inspections in challenging environments.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Explosion-Proof 4mm Diameter Industrial Borescope Videoscope-XT
$2,999.99
Quantity: 1
Claim Your Seller Account
Explosion-Proof 4mm Diameter Industrial Borescope Videoscope-XT
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

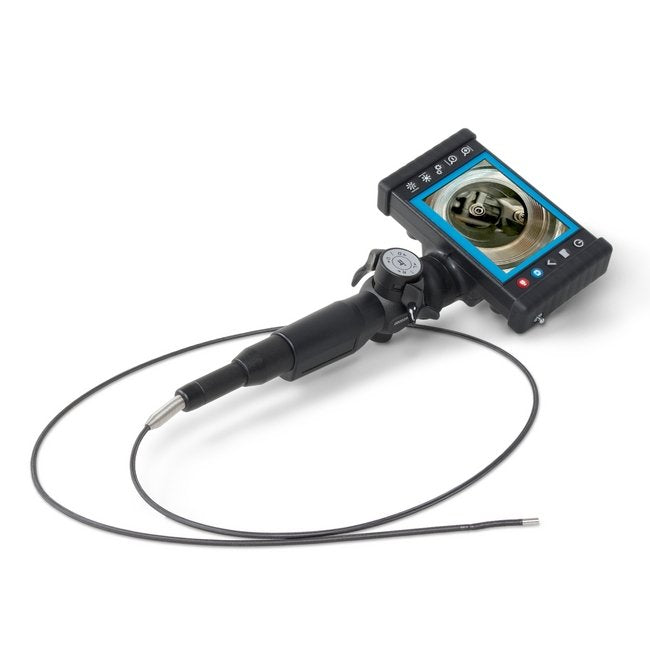

The Explosion-Proof 4mm Diameter Industrial Borescope Videoscope-XT by Fiberscope.net is a cutting-edge inspection solution designed for demanding environments. With a 4-way tip articulation, cold fiber optic light design, and 3.5x digital zoom, this borescope delivers unparalleled performance. Its explosion-proof construction ensures safety in volatile settings, making it ideal for oil and gas facilities, aviation, and military applications. The integrated 5" color TFT monitor, comparative measurement capabilities, and high temperature resistance further enhance its versatility. Experience precision and efficiency with the Videoscope-XT for a wide range of inspection needs.
Product Specifications
Additional Information
This VIDEOSCOPE-XT inspection system comes as a complete package, including a monitor and an explosion-proof design. It features a high-quality color CMOS camera chip located in the probe's tip, allowing access to tight spaces or corners with a small bend radius. The camera tip provides a 90-degree field of view and 4-way articulation with 360-degree rotation, which is controlled via two knobs on the ergonomic handle for ease of use. Optical fibers guide the beam from a powerful LED source in the handle to the probe's tip, providing strong illumination. This fiber optic technology is integrated into the videoscope to prevent any spark in explosive environments and deliver clear images. The live image is displayed on a 5" color TFT monitor, with additional features such as digital zoom, text input for captured files, comparative measurement, and a rechargeable battery for portability. This explosion-proof borescope camera VIDEOSCOPE-XT is ideal for inspections of fuel tanks, police and military applications, customs and border protection, aviation and gas turbine, NDT, and power plant inspections.
Applications
Oil and Gas Facilities Petrochemical PlantsIndustrial InspectionsAviation IndustryMining OperationsFactory InspectionsMechanical EngineeringLaw enforcement and Border control
Features
One-Touch Image Capture4-Way Tip Articulation with 360º RotationTwo Mechanical Levers for Precise Articulation ControlBuilt-in 3.5x Digital ZoomCold Fiber Optic Light Design for Explosive EnvironmentsComparative Measurement Heat-resistant up to 176 ºF (+80 ºC) or 284 ºF (140 ºC) < 5 Minutes
Technical Specs Articulation
4-Way
Technical Specs Brands
Fiberscope.net by MEDIT
Technical Specs Diameter
4 mm | 0.16 in
Technical Specs Display Size
5 in
Technical Specs Display Type
Thin Film Transistor (TFT)
Technical Specs Imagevideo Capture
Yes
Technical Specs Interchangeable Probes
No
Technical Specs Length
1.5 m | 2 m | 3 m | 4.9 to 9.8 ft
Technical Specs Measurement
Yes
Technical Specs Note
Available for Rent
Technical Specs Probe Braiding
Tungsten
Technical Specs Resolution
640x480
Technical Specs Waterproof Probe
14.7 psi (1 bar - 10.2 m H2O)
