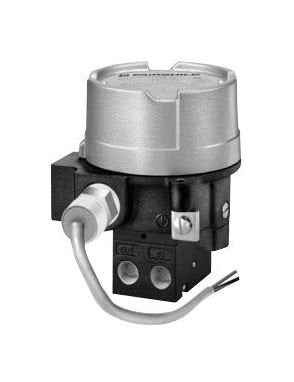

Our Explosion-Proof Electro-Pneumatic Transducers are designed for high-risk environments, offering maximum flow capacity, precise output pressure options, and minimal air consumption. With underwriting group approvals including A, C, E, CE, and F, these transducers meet stringent safety standards.
Product Specifications
Specifications Dc Voltage Supply
4 to 20 mA
Specifications Dimensions
3-11/16 x 3-13/16 x 4-5/8 in | 94 x 97 x 117.5 mm
Specifications Exhaust Capacity
3.4 m³/h
Specifications Full Scale Fs Repeatability
<0.1 %
Specifications Maximum Air Consumption
13.5 ft³/min | 0.38 m³/h
Specifications Maximum Flow Capacity At Supply Of 120 Pounds Per
9 ft³/min | 15.3 m³/h
Specifications Maximum Pressure Supply
20 to 120 psig | 500 to 800 kPa
Specifications Output Pressure
3 to 15 psig | 3 to 27 psig | 6 to 30 psig | 20 to 100 kPa | 20 to 180 kPa | 40 to 200 kPa
Specifications Pipe Size
1/4
Specifications Full Scale Fs Accuracy
0.15 %
Specifications Underwriting Group Approvals
A | C | E | European Conformity (CE) | F
