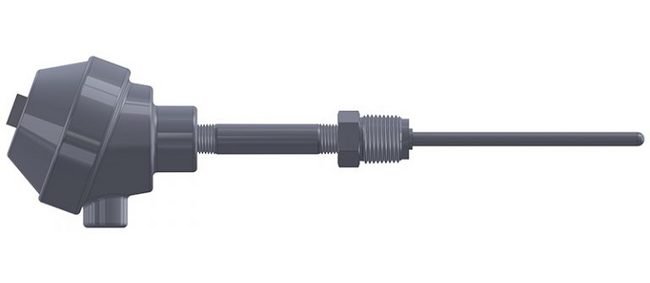

The Explosion Proof Spring-Loaded RTD Assemblies by Acrolab are expertly crafted for hazardous areas in the U.S. and Canada. These FM and CSA approved assemblies meet XP Class I, Division 1, Group B, C, and D; DIP Class II, Division I, Groups E, F, G and Class III, Division 1 standards ensuring safety and reliability. With 316 stainless steel sheaths and options for aluminum or stainless steel explosion proof connection heads, these assemblies are designed to extinguish internal flames, preventing ignition of flammable mixtures. The 100 Ohm Platinum RTD Elements offer low range wire wound temperature from -200 to 204 ºC, ensuring precision and accuracy in temperature sensing applications.
Product Specifications
Note

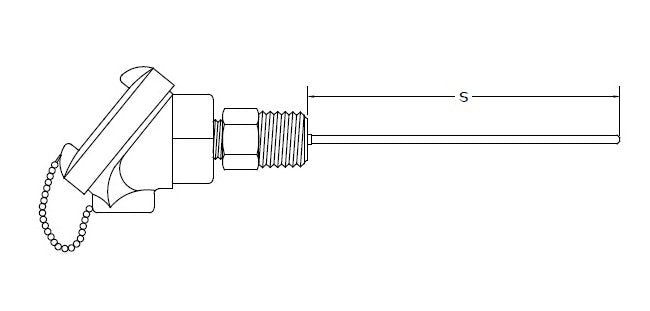

The "S" dimension will measure 1/4" longer than specified when the spring is in the relaxed position. The "S" dimension is calculated when the sensor is compressed or in the installed position. This design allows 1/4" spring compression to ensure positive contact with the bottom of the thermowell.
Specifications 100 Ohm Platinum Resistance Temperature Detector
Duplex - RTD/RTD | Single - RTD
Specifications Agency Approval
XP - FM/CSA Explosion Proof Approved Assembly
Specifications Compression Spring Size
1/4 in
Specifications Element Connection
2 - 2 Wire Element | 3 - 3 Wire Element | 4 (Not Available in Duplex or with 440 Series Transmitter) - 4 Wire Element
Specifications Industry Standards
CSA File #217989; | FM Approved
Specifications Initial Element Accuracy At 0 Degree Celsius C Te
0.1 %
Specifications Low Range Wire Wound Temperature
-200 to 204 ºC
Specifications Options
I - Stainless Steel Tag | SB - 1/2 in. NPT Conduit Reducer Bushing | TR - (4 to 20) mA Heat-Mounted Transmitter
Specifications Sheath Diameters
28 (Not Available in Duplex) - 1/8 | 38 - 3/16 | 48 - 1/4 | 68 - 3/8
Specifications Sheath Mounting Fitting
00 - No Fitting
Specifications Sheath Terminations
71 - Cast Iron/Aluminum Explosion Proof Head Group C with 1/2 in. NPT SS Hex Nipple | 72 - DIN Form B Aluminum Explosion Proof Head Group B with 1/2 in. NPT SS Hex Nipple | 74 - DIN Form B Aluminum Explosion Proof Head Group A with 1/2 in. NPT SS Hex Nipple | 81 - 316L Stainless Steel Explosion Proof Head Group C with 1/2 in. NPT SS Hex Nipple | 82 - DIN Form B 316 Stainless Steel Explosion Proof Head Group B with 1/2 in. NPT SS Hex Nipple
Specifications X Dimensions
Insert Three Digit Sheath Length ("X" Dimension) in Inches
