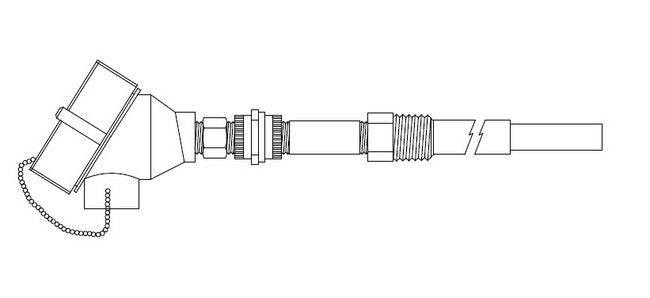

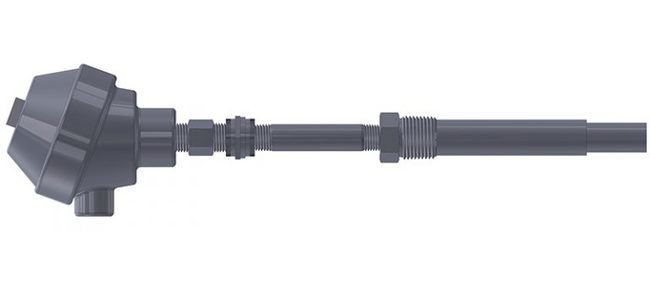

Explosion Proof Thermocouple Assemblies with Thermowells
Explosion Proof Thermocouple Assemblies with Thermowells
SKU:THE-13cf81
FM & CSA approved Explosion Proof Thermocouple Assemblies for hazardous areas. Stainless steel sheaths with isolated junctions.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Explosion Proof Thermocouple Assemblies with Thermowells
$129.99
Quantity: 1
Claim Your Seller Account
Explosion Proof Thermocouple Assemblies with Thermowells
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Designed for hazardous areas in the U.S. and Canada, these Explosion Proof Thermocouple Assemblies with Thermowells are FM and CSA approved, meeting XP Class I, Division 1 standards. Available in various sheath diameters and with stainless steel sheaths, these assemblies feature isolated junctions and come with aluminum or stainless steel explosion proof connection heads, ensuring safety and reliability in potentially explosive atmospheres.
Product Specifications
Specifications Agency Approval
XP - FM/CSA Explosion Proof Approved Assembly
Specifications Element Connection
2 - 2 Wire Element | 3 - 3 Wire Element | 4 (Not Available in Duplex or with 440 Series Transmitter) - 4 Wire Element
Specifications Industry Standards
CSA File #217989; | FM Approved
Specifications Options
I - Stainless Steel Tag | SB - 1/2 in. NPT Conduit Reducer Bushing | TR - (4 to 20) mA Heat-Mounted Transmitter
Specifications Sheath Diameters
28 (Not Available in Duplex) - 1/8 | 38 - 3/16 | 48 - 1/4 | 68 - 3/8
Specifications Sheath Mounting Fitting
00 - No Fitting
Specifications Sheath Terminations
71 - Cast Iron/Aluminum Explosion Proof Head Group C with 1/2 in. NPT SS Hex Nipple | 72 - DIN Form B Aluminum Explosion Proof Head Group B with 1/2 in. NPT SS Hex Nipple | 74 - DIN Form B Aluminum Explosion Proof Head Group A with 1/2 in. NPT SS Hex Nipple | 81 - 316L Stainless Steel Explosion Proof Head Group C with 1/2 in. NPT SS Hex Nipple | 82 - DIN Form B 316 Stainless Steel Explosion Proof Head Group B with 1/2 in. NPT SS Hex Nipple
Specifications Thermocouple Types
Single E - Double EE | Single J -Double JJ | Single K - Double KK | Single T - Double TT
Specifications X Dimensions
Insert Three Digit Sheath Length ("X" Dimension) in Inches
