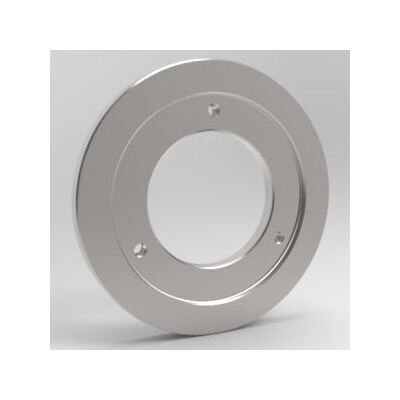

Extended OD Flange Adapter Rings
Extended OD Flange Adapter Rings
SKU:ROU-1d306b
Precision-engineered Flange Adapter Rings for extending OD of collars and couplings. Ideal for versatile mounting options. Available in Steel, Stainless Steel, and Aluminum.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Extended OD Flange Adapter Rings
$39.99
Quantity: 1
Claim Your Seller Account
Extended OD Flange Adapter Rings
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Extended OD Flange Adapter Rings are precision-engineered to extend the outer diameter of Accu-Flange™ Collars and Precision Sleeve Flange Couplings. Featuring three adapter holes for versatile mounting options, these rings allow custom machining to suit specific bolt patterns. Available in 1018 Steel, Stainless Steel, and Aluminum variants, these weldable rings provide durability and flexibility in industrial applications.
Product Specifications
Dimensional Attributes Accu Flange Collar Bore Size
1/2 in
Dimensional Attributes Inside Diameter
1.377 in
Dimensional Attributes Mounting Hole
8-32
Dimensional Attributes Outside Diameter
4.250 in
Dimensional Attributes Width
0.375 in
Specifications Alloy
2024-T351
Specifications Approximate Weight
0.46 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Aluminum
Specifications Part Number
FRA0083754250
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786031892
