Extended Tie Rods Both Ends Mount for 4MA Series Air Cylinders - 6" and 8" Bore
Extended Tie Rods Both Ends Mount for 4MA Series Air Cylinders - 6" and 8" Bore
SKU:AIR-14170d
Upgrade your pneumatic systems with NFPA-compliant Tie Rods for 4MA Series Air Cylinders. Lightweight aluminum construction, adjustable cushions, versatile bore sizes, and RoHS compliance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Extended Tie Rods Both Ends Mount for 4MA Series Air Cylinders - 6" and 8" Bore
$129.99
Quantity: 1
Claim Your Seller Account
Extended Tie Rods Both Ends Mount for 4MA Series Air Cylinders - 6" and 8" Bore
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your pneumatic systems with the NFPA-compliant Tie Rods Extended Both Ends Mount for 4MA Series Air Cylinders. Crafted from lightweight aluminum, these cylinders offer exceptional durability and efficiency. Features include flexible construction, removable bronze alloy bearing for easy maintenance, various bore sizes, multiple mounting styles, and RoHS compliance. With adjustable cushions at both ends and interchangeable rod options, these cylinders ensure precise linear force and motion for diverse applications.

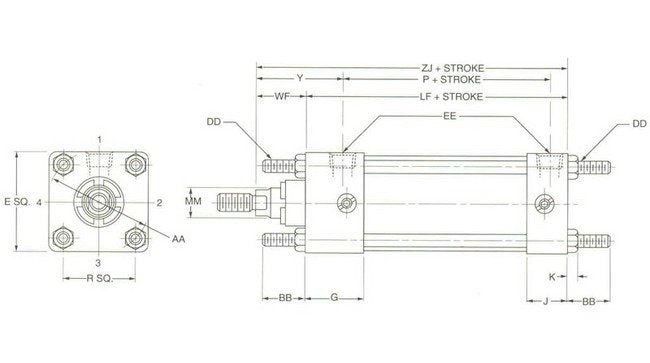

Product Specifications
Rod Dimensions A
1 5/8 in | 2 in
Rod Dimensions B
1.999 in | 2.374 in
Rod Dimensions C
13/16 in | 7/8 in
Rod Dimensions D
1 1/2 in | 1 1/8 in
Rod Dimensions La
3 1/4 in | 3 7/8 in
Rod Dimensions Na
1 11/16 in | 1 5/16 in
Rod Dimensions Rod Dimension Mm
1 3/4 in | 1 3/8 in
Rod Dimensions Thread Style 2 3 Kk
1 1/4-12 | 1-14
Rod Dimensions Thread Style 4 Cc
1 1/2 -12 | 1 1/4 -12
Rod Dimensions Tolerance B
+0.000 in | -0.002 in
Rod Dimensions Vf
1 1/16 in | 3/4 in
Rod Dimensions W
1 1/8 in | 7/8 in
Rod Dimensions Wf
1 5/8 in | 1 7/8 in
Rod Dimensions Y
2 3/4 in | 3 in
Specifications Aa
9.1 in
Specifications Add Stroke Lf
5 1/8 in
Specifications Add Stroke P
3 1/4 in
Specifications Add Stroke Zj
6 3/4 in | 7 in
Specifications Bb
2 5/16 in
Specifications Bore Size
8 in
Specifications Dd
5/8 - 18 in
Specifications E
8 1/2 in
Specifications Ee Nptf
3/4 in
Specifications G
1.81 in
Specifications J
1.44 in
Specifications K
9/16 in
Specifications Manufacturer
Schrader Bellows®
Specifications Nfpa
MX1
Specifications R
6.44 in
