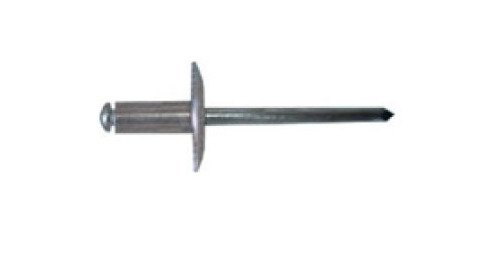

Extra Large Aluminum Blind Rivet - 4.8mm x 14.0mm
Extra Large Aluminum Blind Rivet - 4.8mm x 14.0mm
SKU:OPE-c8f772
Ornit Extra Large Aluminum Blind Rivet, Strong and Durable, Ideal for Heavy-Duty Applications
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Extra Large Aluminum Blind Rivet - 4.8mm x 14.0mm
$79.99
Quantity: 1
Claim Your Seller Account
Extra Large Aluminum Blind Rivet - 4.8mm x 14.0mm
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your structural projects with the Ornit Open End X-Large Blind Rivet. Crafted from AA 5052 Aluminum Alloy, this rivet offers strength and corrosion resistance. The zinc-plated chromium mandrel ensures secure fastening, meeting high industry standards for durability and reliability. With a shear force capacity of 150 kgf and a tensile force of 220 kgf, this rivet is ideal for heavy-duty applications.
Product Specifications
Nominal Dimensions Body Length
14.0 mm | 0.551 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.8 mm | 0.622 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
9.0 mm | 0.354 in
Nominal Dimensions Minimum Grip Range
7.0 mm | 0.276 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
