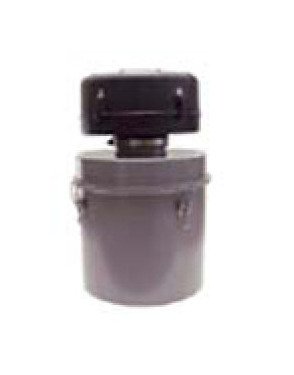

Extreme Duty 4 Inch Inlet Air Filter with Paper Element
Extreme Duty 4 Inch Inlet Air Filter with Paper Element
SKU:SPI-c4d562
Ultimate filtration for high dust levels, extends filter life, and versatile for various industrial applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.



The Extreme Duty 4 Inch Inlet Air Filter with Paper Element is designed for high dust environments, significantly extending filter life. Featuring a centrifugal flow that achieves 85% efficiency at 15 microns, it then passes through a 99%+ pleated element for superior filtration. With a durable composite pre-cleaner, this configurable unit is ideal for Blowers, Engines, Fans, Foundries, and more. Its heavy-duty construction and multiple configurations make it a versatile and reliable choice for demanding applications.
Product Specifications
Dimensions Dimension A
19-3/4 in
Dimensions Dimension B
4 in
Dimensions Dimension C
11 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
35 lb
Specifications Connection Style
Flange (FLG)
Specifications Element Material
Paper
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
4 in
Specifications Rated Flow
250 scfm
Specifications Type
C
