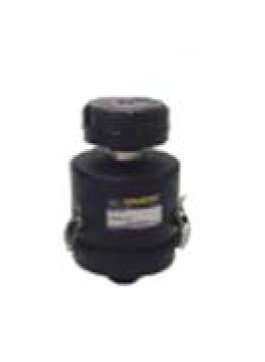

Extreme Duty Inlet Air Filter with Paper Element - 2-1/2" Outlet
Extreme Duty Inlet Air Filter with Paper Element - 2-1/2" Outlet
SKU:SPI-e7c487
Enhanced Inlet Air Filter with Paper Element for high dust environments, 85% efficiency at 15 microns, durable construction, versatile configurations.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Extreme Duty Inlet Air Filter with Paper Element - 2-1/2" Outlet
$129.99
Quantity: 1
Claim Your Seller Account
Extreme Duty Inlet Air Filter with Paper Element - 2-1/2" Outlet
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2-1/2 Inch Outlet Extreme Duty Inlet Air Filter with Paper Element from the Spinmeister Extreme Duty series offers unparalleled filtration efficiency for high dust environments. Featuring a centrifugal flow design that achieves 85% efficiency at 15 microns, this filter extends filter element life significantly. With a 99%+ efficient pleated element and a durable molded fiber-filled composite Spinmeister-Precleaner, this filter ensures top-tier air quality. The filter housing boasts heavy gauge carbon steel construction, a low pressure drop bracket, and outlet pipe design, making it suitable for a wide range of applications in blowers, cement, engines, fans, foundries, grain elevators, plastics, and more. This product allows for multiple configurations, including options for Polished Aluminum SpinMeisters, various media for the element, and different connection types.
Product Specifications
Dimensions Dimension A
11-5/8 in
Dimensions Dimension B
2-1/2 in
Dimensions Dimension C
7 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
4 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Paper
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
2-1/2 in
Specifications Rated Flow
110 scfm
Specifications Type
B
