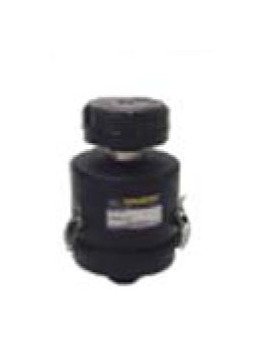

Extreme Duty Inlet Air Filter with Polyester Element - 2-1/2" Outlet
Extreme Duty Inlet Air Filter with Polyester Element - 2-1/2" Outlet
SKU:SPI-53720c
Enhance equipment longevity with our high-efficiency Extreme Duty Inlet Air Filter for heavy dust environments.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Extreme Duty Inlet Air Filter with Polyester Element - 2-1/2" Outlet
$79.99
Quantity: 1
Claim Your Seller Account
Extreme Duty Inlet Air Filter with Polyester Element - 2-1/2" Outlet
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Extreme Duty Inlet Air Filter with Polyester Element features a centrifugal flow design that achieves 85% efficiency at 15 microns. With a 99%+ efficient pleated element, this filter significantly prolongs its lifespan. Constructed with durable materials and offering multiple configurations, this product suits diverse applications in high dust environments. Its heavy gauge carbon steel housing ensures durability and efficiency with a low pressure drop bracket and outlet pipe design.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Dimension A
11-5/8 in
Dimensions Dimension B
2-1/2 in
Dimensions Dimension C
7 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
4 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
2-1/2 in
Specifications Rated Flow
110 scfm
Specifications Type
B
