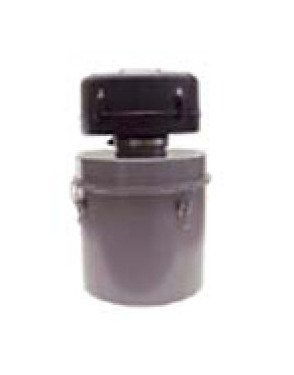

Extreme Duty Spinmeister Inlet Air Filter - 3in Outlet, Polyester Element
Extreme Duty Spinmeister Inlet Air Filter - 3in Outlet, Polyester Element
SKU:SPI-2da73e
Enhanced filtration for high dust areas, durable construction, and customizable for various applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Extreme Duty Spinmeister Inlet Air Filter - 3in Outlet, Polyester Element
$349.99
Quantity: 1
Claim Your Seller Account
Extreme Duty Spinmeister Inlet Air Filter - 3in Outlet, Polyester Element
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Extreme Duty Spinmeister Inlet Air Filter is designed for high dust environments, offering exceptional filtration efficiency and durability. Featuring a centrifugal flow that forces particulate through side louvers, achieving 85% efficiency at 15 microns or larger. The 99%+ efficient pleated polyester element ensures superior air filtration, increasing the lifespan of the filter. Built with a durable composite material, this configurable product can be tailored to specific applications, making it an ideal choice for Blowers, Cement Industry, Engines, Fans, and more.
Product Specifications
Dimensions Dimension A
18-3/4 in
Dimensions Dimension B
3 in
Dimensions Dimension C
11 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
31 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
3 in
Specifications Rated Flow
250 scfm
Specifications Type
C
