Extreme Temperature Jacket LFMC - Type HCX
Extreme Temperature Jacket LFMC - Type HCX
SKU:LIQ-6589ee
High-quality Extreme Temperature Jacket LFMC - Type HCX conduit for superior wiring protection in extreme environments. IP 67 rated. -76°F to +302°F. Liquid-tight raceway.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Extreme Temperature Jacket LFMC - Type HCX
$299.99
Quantity: 1
Claim Your Seller Account
Extreme Temperature Jacket LFMC - Type HCX
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

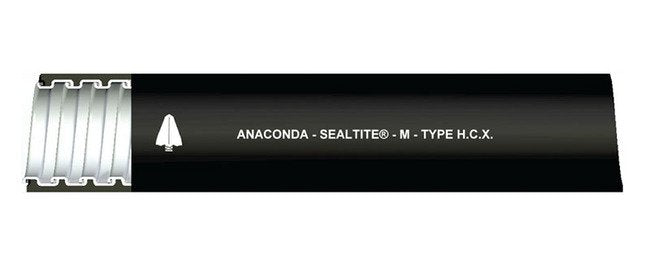

The Extreme Temperature Jacket LFMC - Type HCX is a high-quality liquid-tight flexible metal conduit designed for extreme temperature environments. Featuring a zero halogen thermoplastic rubber jacket, this conduit ensures superior wiring protection with its hot-dipped zinc galvanized steel core and sunlight resistant rubber outer jacket. With an IP 67 rating when used with approved end connectors, it offers flexibility and durability for a wide range of applications where agency approvals are not required. Designed for temperatures ranging from -76°F to +302°F (-60°C to +150°C), this conduit provides a reliable and liquid-tight raceway for electrical conductors.
Product Specifications
Application 0
Where Flexibility is Required in Extreme Temperature EnvironmentsTemperature Range: -76°F to +302°F (-60°C to +150°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC). Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
7.0 in | 177.8 mm
Specifications Approx Weight Per 100 Ft
136 lbs | 61.69 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
66202 | 6807-24-00 | ATX-16 | EXTREME TEMP
Specifications Electrical Trade Size
2 in | 53 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
2.020 to 2.045 in | 51.308 to 51.943 mm
Specifications Jacket Benefits
Extreme Cold | High Heat | Liquid Tight | Zero Halogen
Specifications Jacket Material
Thermoplastic Elastomers (TPE)
Specifications Length
50 ft | 15.24 m
Specifications Note
Sizes above 2" available on special order
Specifications Outside Diameter
2.340 to 2.375 in | 59.436 to 60.325 mm
Specifications Packaging
Standard Carton
Specifications Type
HCX
