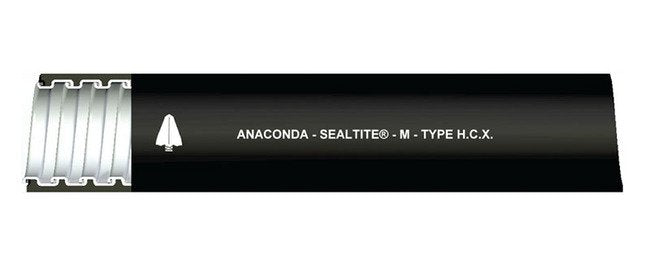

The Extreme Temperature Jacket Liquid-Tight Flexible Metal Conduit (LFMC) Type HCX is designed to withstand harsh environments with its Zero Halogen thermoplastic rubber jacket. This LFMC conduit offers a flexible and liquid-tight raceway for wiring, featuring a core of hot-dipped zinc galvanized steel with a weather-resistant rubber outer layer. Ideal for extreme temperature applications ranging from -76°F to +302°F, it is IP 67 rated with approved end connectors, ensuring superior wiring protection. The conduit is RoHS WEEE certified and meets stringent industry standards for safety and reliability, making it a top choice for both consumer and institutional users.
Product Specifications
Application 0
Where Flexibility is Required in Extreme Temperature EnvironmentsTemperature Range: -76°F to +302°F (-60°C to +150°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC). Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
2.0 in | 50.8 mm
Specifications Approx Weight Per 100 Ft
21 lbs | 9.53 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
60201 | 6801-30-00 | ATX-10 | EXTREME TEMP
Specifications Electrical Trade Size
3/8 in | 12 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.485 to 0.505 in | 12.319 to 12.827 mm
Specifications Jacket Benefits
Extreme Cold | High Heat | Liquid Tight | Zero Halogen
Specifications Jacket Material
Thermoplastic Elastomers (TPE)
Specifications Length
100 ft | 30.48 m
Specifications Note
Sizes above 2" available on special order
Specifications Outside Diameter
0.690 to 0.710 in | 17.526 to 18.034 mm
Specifications Packaging
Standard Carton
Specifications Type
HCX
