Extreme Temperature Jacket Liquid-Tight Flexible Metal Conduit HCX
Extreme Temperature Jacket Liquid-Tight Flexible Metal Conduit HCX
SKU:LIQ-676a54
Extreme Temperature Jacket Liquid-Tight Flexible Metal Conduit HCX: Zero halogen, high heat resistance, RoHS certified for extreme environments.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Extreme Temperature Jacket Liquid-Tight Flexible Metal Conduit HCX
$399.99
Quantity: 1
Claim Your Seller Account
Extreme Temperature Jacket Liquid-Tight Flexible Metal Conduit HCX
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

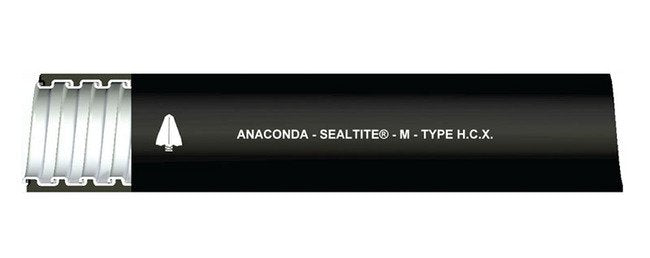

The Extreme Temperature Jacket Liquid-Tight Flexible Metal Conduit HCX is a high-performance solution designed for extreme temperature environments. Featuring a zero halogen, thermoplastic rubber jacket and a hot-dipped zinc galvanized steel core, this conduit offers a flexible liquid-tight raceway for wiring. With an IP 67 rating and RoHS/WEEE certifications, this conduit provides superior wiring protection in temperatures ranging from -76°F to +302°F. Ideal for applications where flexibility and durability are essential, the HCX conduit ensures reliable performance in challenging conditions without the need for agency approvals.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Where Flexibility is Required in Extreme Temperature EnvironmentsTemperature Range: -76°F to +302°F (-60°C to +150°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC). Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
4.0 in | 101.6 mm
Specifications Approx Weight Per 100 Ft
51 lbs | 23.13 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
63204 | 6804-41-00 | ATX-13 | EXTREME TEMP
Specifications Electrical Trade Size
1 in | 27 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.030 to 1.055 in | 26.162 to 26.797 mm
Specifications Jacket Benefits
Extreme Cold | High Heat | Liquid Tight | Zero Halogen
Specifications Jacket Material
Thermoplastic Elastomers (TPE)
Specifications Length
400 ft | 121.92 m
Specifications Note
Sizes above 2" available on special order
Specifications Outside Diameter
1.290 to 1.315 in | 32.766 to 33.401 mm
Specifications Packaging
Small Reels
Specifications Type
HCX
