Extreme Temperature Liquid-Tight Conduit - Type HCX

Name: Extreme Temperature Liquid-Tight Conduit - Type HCX
Brand: Anamet Electrical, Inc.
SKU: LIQ-d1c366
Price: 349.99 USD
Availability: OutOfStock

SKU:LIQ-d1c366

Extreme Temperature Liquid-Tight Conduit - Type HCX: Flexible, durable conduit for extreme environments, IP 67 rated.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

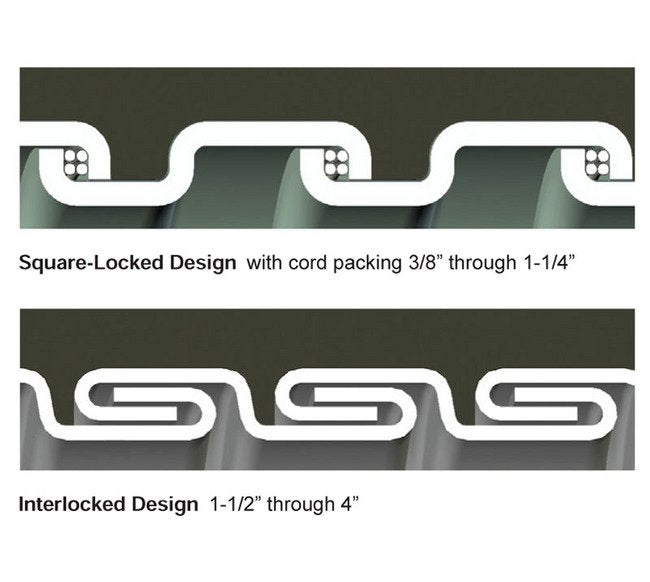

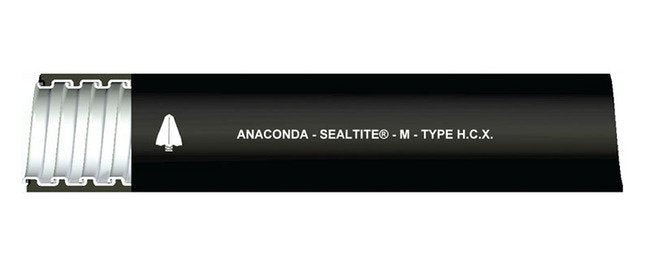

The Extreme Temperature Liquid-Tight Conduit - Type HCX is a robust solution designed for demanding environments. Featuring a zero halogen, thermoplastic rubber jacket, this conduit offers flexibility and durability. Constructed with interlocked hot dipped zinc galvanized steel core and a sunlight resistant rubber outer jacket, it provides a liquid-tight raceway for wiring. With an IP 67 rating when used with approved end connectors, it ensures reliable performance even in extreme conditions. Suitable for applications where agency approvals are not mandatory, this conduit is ideal for settings requiring superior wiring protection.

Product Specifications

Application 0

Where Flexibility is Required in Extreme Temperature EnvironmentsTemperature Range: -76°F to +302°F (-60°C to +150°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC). Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

4.5 in | 114.3 mm

Specifications Approx Weight Per 100 Ft

66 lbs | 29.94 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

64204 | 6805-40-00 | ATX-14 | EXTREME TEMP

Specifications Electrical Trade Size

1-1/4 in | 35 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.370 to 1.395 in | 34.798 to 35.433 mm

Specifications Jacket Benefits

Extreme Cold | High Heat | Liquid Tight | Zero Halogen

Specifications Jacket Material

Thermoplastic Elastomers (TPE)

Specifications Length

250 ft | 76.2 m

Specifications Note

Sizes above 2" available on special order

Specifications Outside Diameter

1.635 to 1.660 in | 41.529 to 42.164 mm

Specifications Packaging

Small Reels

Specifications Type

HCX

Extreme Temperature Liquid-Tight Conduit - Type HCX
