Extreme Temperature Liquid-Tight Flexible Conduit - Type HCX

Name: Extreme Temperature Liquid-Tight Flexible Conduit - Type HCX
Brand: Anamet Electrical, Inc.
SKU: LIQ-de845b
Price: 499.99 USD
Availability: OutOfStock

SKU:LIQ-de845b

Extreme Temperature Liquid-Tight Conduit for reliable wiring protection in harsh environments. IP 67 rated with flexible, liquid-tight design. -76°F to +302°F (-60°C to +150°C) temperature range.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

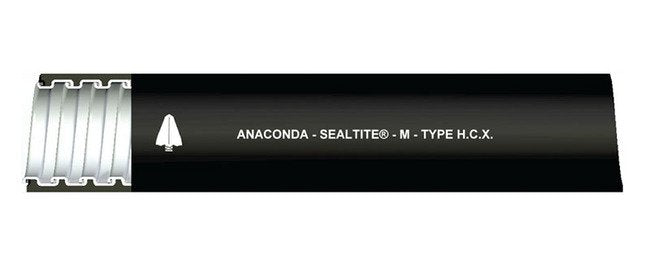

The Type HCX Extreme Temperature Liquid-Tight Flexible Conduit is designed for extreme environments, featuring a zero halogen thermoplastic rubber jacket with a flexible, liquid-tight construction. This conduit offers a reliable raceway for wiring, constructed with hot dipped zinc galvanized steel core and a sunlight-resistant rubber outer jacket. Suitable for applications not requiring agency approvals, this IP 67 rated conduit ensures superior wiring protection in temperatures ranging from -76°F to +302°F (-60°C to +150°C). With a smooth jacket appearance and a range of sizes available, it is ideal for diverse electrical installations.

Product Specifications

Application 0

Where Flexibility is Required in Extreme Temperature EnvironmentsTemperature Range: -76°F to +302°F (-60°C to +150°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC). Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

2.5 in | 63.5 mm

Specifications Approx Weight Per 100 Ft

25 lbs | 11.34 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

61203 | 61204 | 6802-45-00 | 6802-60-00 | ATX-11 | EXTREME TEMP

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.620 to 0.640 in | 15.748 to 16.256 mm

Specifications Jacket Benefits

Extreme Cold | High Heat | Liquid Tight | Zero Halogen

Specifications Jacket Material

Thermoplastic Elastomers (TPE)

Specifications Length

500 ft | 152.4 m

Specifications Note

Sizes above 2" available on special order

Specifications Outside Diameter

0.820 to 0.840 in | 20.828 to 21.336 mm

Specifications Packaging

Small Reels

Specifications Type

HCX

Extreme Temperature Liquid-Tight Flexible Conduit - Type HCX
