Extreme Temperature Liquid-Tight Flexible Metal Conduit (1 Inch, 100 ft) - Type HCX
Extreme Temperature Liquid-Tight Flexible Metal Conduit (1 Inch, 100 ft) - Type HCX
SKU:LIQ-ced58d
Type HCX Extreme Temp Liquid-Tight Flexible Metal Conduit: Ideal for extreme temperature wiring applications. Offers flexibility and liquid-tight protection in a rugged design.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Extreme Temperature Liquid-Tight Flexible Metal Conduit (1 Inch, 100 ft) - Type HCX
$289.99
Quantity: 1
Claim Your Seller Account
Extreme Temperature Liquid-Tight Flexible Metal Conduit (1 Inch, 100 ft) - Type HCX
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

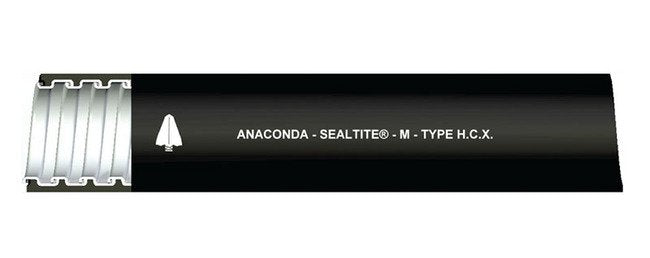

The Type HCX Extreme Temperature Liquid-Tight Flexible Metal Conduit is designed for extreme temperature environments, offering a flexible and liquid-tight raceway for wiring. With a zero halogen thermoplastic rubber jacket, this conduit features a continuously interlocked hot-dipped zinc galvanized steel core with a sunlight-resistant rubber outer jacket. Ideal for applications not requiring agency approvals, it comes with an IP67 rating when used with approved end connectors. With an inside diameter of 1.030 to 1.055 inches and a temperature range of -76°F to +302°F, this conduit provides superior wiring protection in demanding conditions.
Product Specifications
Application 0
Where Flexibility is Required in Extreme Temperature EnvironmentsTemperature Range: -76°F to +302°F (-60°C to +150°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC). Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
4.0 in | 101.6 mm
Specifications Approx Weight Per 100 Ft
51 lbs | 23.13 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
63202 | 6804-30-00 | ATX-13 | EXTREME TEMP
Specifications Electrical Trade Size
1 in | 27 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.030 to 1.055 in | 26.162 to 26.797 mm
Specifications Jacket Benefits
Extreme Cold | High Heat | Liquid Tight | Zero Halogen
Specifications Jacket Material
Thermoplastic Elastomers (TPE)
Specifications Length
100 ft | 30.48 m
Specifications Note
Sizes above 2" available on special order
Specifications Outside Diameter
1.290 to 1.315 in | 32.766 to 33.401 mm
Specifications Packaging
Standard Carton
Specifications Type
HCX
