Extreme Temperature Liquid-Tight Flexible Metal Conduit HCX

Name: Extreme Temperature Liquid-Tight Flexible Metal Conduit HCX
Brand: Anamet Electrical, Inc.
SKU: LIQ-efd766
Price: 259.99 USD
Availability: OutOfStock

SKU:LIQ-efd766

Extreme Temperature Liquid-Tight Flexible Metal Conduit HCX provides superior wiring protection in extreme temperatures. IP 67 rated with zero halogen jacket. Suitable for various applications.

$259.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

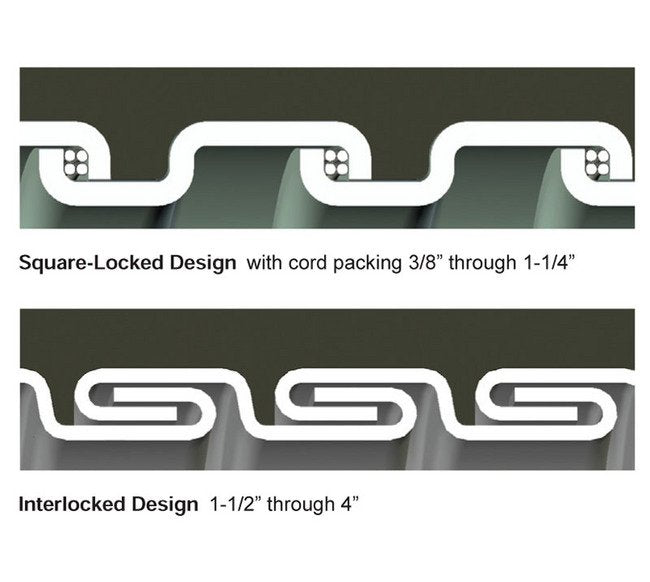

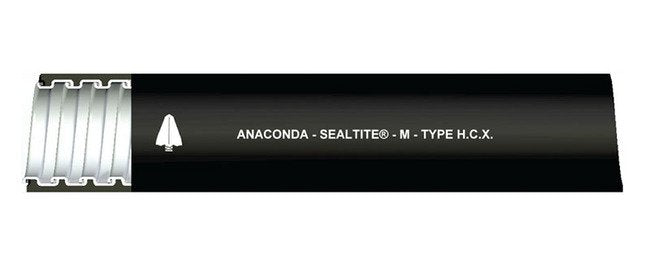

The Extreme Temperature Liquid-Tight Flexible Metal Conduit HCX is designed for extreme temperature environments, offering a flexible and liquid-tight raceway for wiring. With a zero halogen, thermoplastic rubber jacket, this conduit features a continuously interlocked hot-dipped zinc galvanized steel core with a sunlight-resistant rubber outer jacket. It is IP 67 rated when used with approved end connectors and is ideal for applications not requiring agency approvals. The conduit provides superior wiring protection in temperatures ranging from -76°F to +302°F (-60°C to +150°C) and is available in various trade sizes.

Product Specifications

Application 0

Where Flexibility is Required in Extreme Temperature EnvironmentsTemperature Range: -76°F to +302°F (-60°C to +150°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC). Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

2.0 in | 50.8 mm

Specifications Approx Weight Per 100 Ft

21 lbs | 9.53 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

60203 | 60204 | ATX-10 | EXTREME TEMP

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.485 to 0.505 in | 12.319 to 12.827 mm

Specifications Jacket Benefits

Extreme Cold | High Heat | Liquid Tight | Zero Halogen

Specifications Jacket Material

Thermoplastic Elastomers (TPE)

Specifications Length

800 ft | 243.84 m

Specifications Note

Sizes above 2" available on special order

Specifications Outside Diameter

0.690 to 0.710 in | 17.526 to 18.034 mm

Specifications Packaging

Small Reels

Specifications Type

HCX

Extreme Temperature Liquid-Tight Flexible Metal Conduit HCX
