Extreme Temperature Liquid-Tight Flexible Metal Conduit HCX - 3/4" x 500 ft

Name: Extreme Temperature Liquid-Tight Flexible Metal Conduit HCX - 3/4" x 500 ft
Brand: Anamet Electrical, Inc.
SKU: LIQ-177d26
Price: 449.99 USD
Availability: OutOfStock

SKU:LIQ-177d26

Extreme Temperature Liquid-Tight Flexible Metal Conduit HCX - Ideal for extreme environments, IP67 rated, RoHS WEEE certified.

$449.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

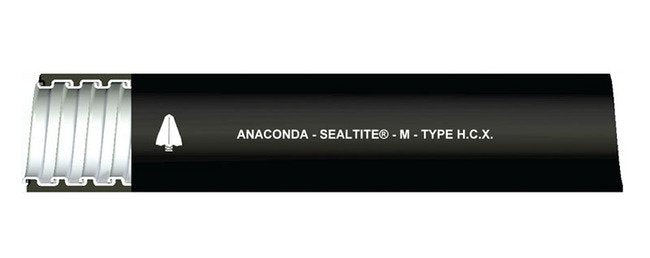

The Extreme Temperature Liquid-Tight Flexible Metal Conduit Type HCX is engineered for extreme environments, featuring a zero halogen thermoplastic elastomer jacket for maximum flexibility and protection. Constructed with a galvanized steel core and a sunlight-resistant rubber outer layer, this conduit ensures a liquid-tight raceway for wiring applications. With an IP 67 rating and RoHS WEEE certification, it meets industry standards and offers superior performance in temperatures ranging from -76°F to +302°F (-60°C to +150°C). Ideal for applications where agency approvals are not mandated.

Product Specifications

Application 0

Where Flexibility is Required in Extreme Temperature EnvironmentsTemperature Range: -76°F to +302°F (-60°C to +150°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC). Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

39 lbs | 17.69 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

62204 | 62210 | 6803-45-00 | 6803-60-00 | ATX-12 | EXTREME TEMP

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.815 to 0.835 in | 20.701 to 21.209 mm

Specifications Jacket Benefits

Extreme Cold | High Heat | Liquid Tight | Zero Halogen

Specifications Jacket Material

Thermoplastic Elastomers (TPE)

Specifications Length

500 ft | 152.4 m

Specifications Note

Sizes above 2" available on special order

Specifications Outside Diameter

1.030 to 1.050 in | 26.162 to 26.670 mm

Specifications Packaging

Small Reels

Specifications Type

HCX
