Extreme Temperature Liquid-Tight Flexible Metal Conduit - Type HCX
Extreme Temperature Liquid-Tight Flexible Metal Conduit - Type HCX
SKU:LIQ-307e9c
Maximize wiring protection in extreme temperatures with our Zero Halogen Type HCX Liquid-Tight Flexible Metal Conduit.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Extreme Temperature Liquid-Tight Flexible Metal Conduit - Type HCX
$149.99
Quantity: 1
Claim Your Seller Account
Extreme Temperature Liquid-Tight Flexible Metal Conduit - Type HCX
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

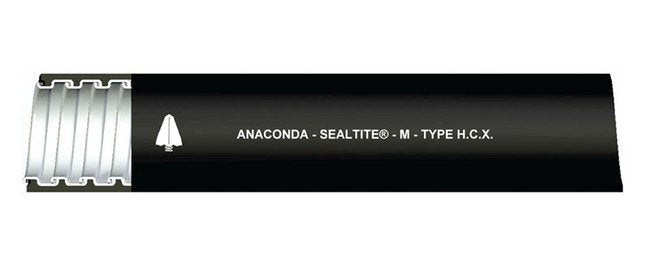

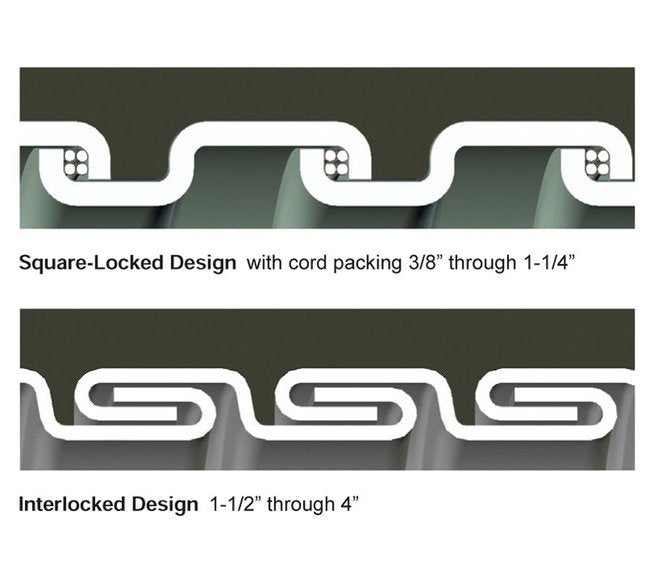

The Extreme Temperature Liquid-Tight Flexible Metal Conduit - Type HCX is a top-of-the-line solution for wiring applications in extreme environments. With a zero halogen, thermoplastic rubber jacket and continuously interlocked hot-dipped zinc galvanized steel core, this conduit offers unparalleled flexibility and liquid-tight protection. It is IP 67 rated when paired with approved end connectors, ensuring superior performance in harsh conditions. From -76°F to +302°F temperature range to RoHS WEEE certification, this conduit guarantees safety and reliability where agency approvals are not required.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Where Flexibility is Required in Extreme Temperature EnvironmentsTemperature Range: -76°F to +302°F (-60°C to +150°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC). Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
2.5 in | 63.5 mm
Specifications Approx Weight Per 100 Ft
25 lbs | 11.34 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
61201 | 6802-30-00 | ATX-11 | EXTREME TEMP
Specifications Electrical Trade Size
1/2 in | 16 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.620 to 0.640 in | 15.748 to 16.256 mm
Specifications Jacket Benefits
Extreme Cold | High Heat | Liquid Tight | Zero Halogen
Specifications Jacket Material
Thermoplastic Elastomers (TPE)
Specifications Length
100 ft | 30.48 m
Specifications Note
Sizes above 2" available on special order
Specifications Outside Diameter
0.820 to 0.840 in | 20.828 to 21.336 mm
Specifications Packaging
Standard Carton
Specifications Type
HCX
