Extreme Temperature Liquid-Tight Flexible Metal Conduit - Type HCX

Name: Extreme Temperature Liquid-Tight Flexible Metal Conduit - Type HCX
Brand: Anamet Electrical, Inc.
SKU: LIQ-c63abd
Price: 299.99 USD
Availability: OutOfStock

SKU:LIQ-c63abd

Type HCX Extreme Temp Liquid-Tight Metal Conduit: -76°F to +302°F temperature range, flexible & durable, IP 67 rated, ideal for harsh conditions.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

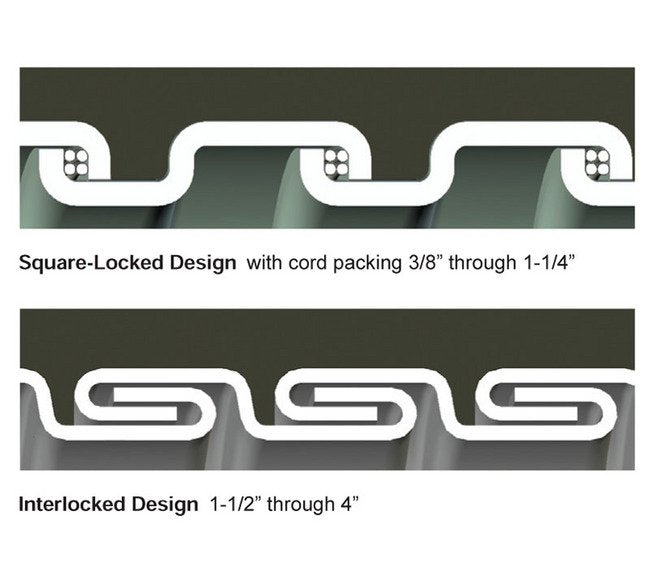

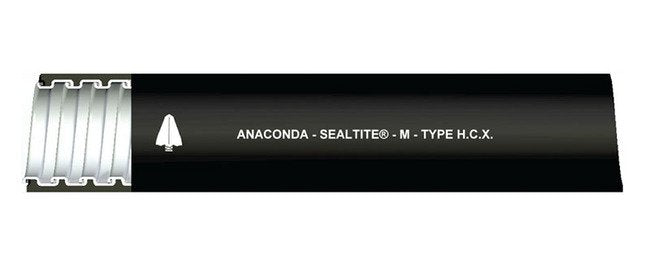

The Type HCX Extreme Temperature Liquid-Tight Flexible Metal Conduit offers unparalleled wiring protection in extreme temperature environments ranging from -76°F to +302°F. Constructed with a continuously interlocked hot dipped zinc galvanized steel core and a zero halogen thermoplastic elastomer jacket, this conduit ensures flexibility and durability. It provides a liquid-tight raceway for electrical conductors, meeting IP 67 rating when installed with approved connectors. Ideal for applications where agency approvals are not required, this conduit delivers reliable performance in harsh conditions.

Product Specifications

Application 0

Where Flexibility is Required in Extreme Temperature EnvironmentsTemperature Range: -76°F to +302°F (-60°C to +150°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC). Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

7.0 in | 177.8 mm

Specifications Approx Weight Per 100 Ft

136 lbs | 61.69 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

66204 | ATX-16 | EXTREME TEMP

Specifications Electrical Trade Size

2 in | 53 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

2.020 to 2.045 in | 51.308 to 51.943 mm

Specifications Jacket Benefits

Extreme Cold | High Heat | Liquid Tight | Zero Halogen

Specifications Jacket Material

Thermoplastic Elastomers (TPE)

Specifications Length

100 ft | 30.48 m

Specifications Note

Sizes above 2" available on special order

Specifications Outside Diameter

2.340 to 2.375 in | 59.436 to 60.325 mm

Specifications Packaging

Small Reels

Specifications Type

HCX

Extreme Temperature Liquid-Tight Flexible Metal Conduit - Type HCX
