Extreme Temperature Liquid-Tight Flexible Metal Conduit - Type HCX

Name: Extreme Temperature Liquid-Tight Flexible Metal Conduit - Type HCX
Brand: Anamet Electrical, Inc.
SKU: LIQ-0d58bd
Price: 299.99 USD
Availability: OutOfStock

SKU:LIQ-0d58bd

Extreme Temperature Liquid-Tight Flexible Metal Conduit - Type HCX: Zero Halogen Jacket, Superior Flexibility & IP 67 Rated for Extreme Environments.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

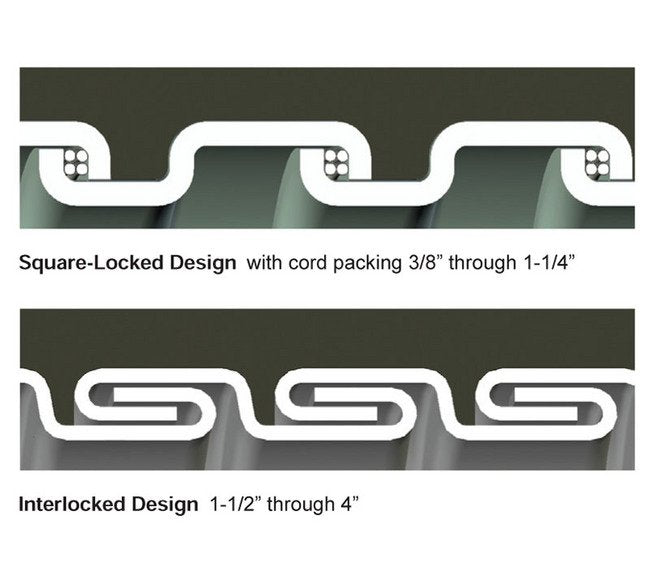

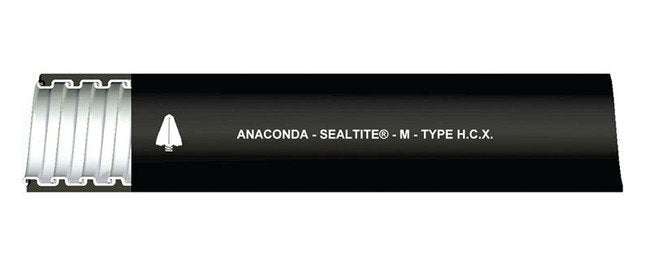

The Extreme Temperature Liquid-Tight Flexible Metal Conduit - Type HCX is a top-grade solution offering a zero halogen, thermoplastic rubber jacket for maximum safety. Designed for extreme temperature environments, this conduit features a continuously interlocked hot-dipped zinc galvanized steel core with a sunlight-resistant rubber outer jacket. With IP 67 rating and RoHS WEEE certification, it ensures superior wiring protection with flexibility in applications not requiring agency approvals. From -76°F to +302°F, it delivers outstanding performance in a wide temperature range.

Product Specifications

Application 0

Where Flexibility is Required in Extreme Temperature EnvironmentsTemperature Range: -76°F to +302°F (-60°C to +150°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC). Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

5.5 in | 139.7 mm

Specifications Approx Weight Per 100 Ft

104 lbs | 47.17 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

65204 | ATX-15 | EXTREME TEMP

Specifications Electrical Trade Size

1-1/2 in | 41 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.575 to 1.600 in | 40.005 to 40.640 mm

Specifications Jacket Benefits

Extreme Cold | High Heat | Liquid Tight | Zero Halogen

Specifications Jacket Material

Thermoplastic Elastomers (TPE)

Specifications Length

150 ft | 45.72 m

Specifications Note

Sizes above 2" available on special order

Specifications Outside Diameter

1.865 to 1.900 in | 47.371 to 48.260 mm

Specifications Packaging

Small Reels

Specifications Type

HCX

Extreme Temperature Liquid-Tight Flexible Metal Conduit - Type HCX
