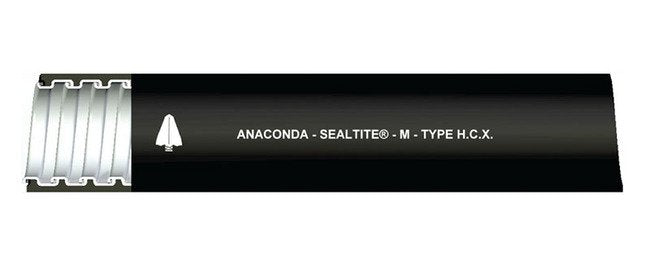

The Type HCX Extreme Temperature Jacket Liquid-Tight Flexible Metal Conduit is a premium solution for wiring applications in extreme environments. With a zero halogen thermoplastic rubber jacket over a hot-dipped zinc galvanized steel core, this conduit offers flexibility and superior protection. It is IP 67 rated with approved end connectors, suitable for a temperature range of -76°F to +302°F (-60°C to +150°C). The jacket is resistant to extreme cold, high heat, and is liquid-tight, providing optimal safety and reliability in harsh conditions.
Product Specifications
Application 0
Where Flexibility is Required in Extreme Temperature EnvironmentsTemperature Range: -76°F to +302°F (-60°C to +150°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC). Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
4.5 in | 114.3 mm
Specifications Approx Weight Per 100 Ft
66 lbs | 29.94 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
64202 | 6805-24-00 | ATX-14 | EXTREME TEMP
Specifications Electrical Trade Size
1-1/4 in | 35 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.370 to 1.395 in | 34.798 to 35.433 mm
Specifications Jacket Benefits
Extreme Cold | High Heat | Liquid Tight | Zero Halogen
Specifications Jacket Material
Thermoplastic Elastomers (TPE)
Specifications Length
50 ft | 15.24 m
Specifications Note
Sizes above 2" available on special order
Specifications Outside Diameter
1.635 to 1.660 in | 41.529 to 42.164 mm
Specifications Packaging
Standard Carton
Specifications Type
HCX
