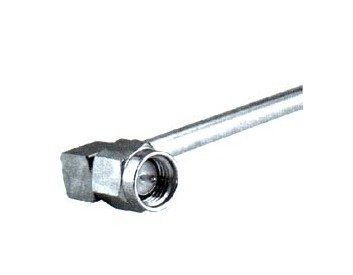

EZ 141 Right Angle SMA Cable Plugs (Male)
EZ 141 Right Angle SMA Cable Plugs (Male)
SKU:SMA-e16f1f
High-performance SMA male cable plugs for RF applications up to 18 GHz. Durable, reliable, and compliant with industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
EZ 141 Right Angle SMA Cable Plugs (Male)
$29.99
Quantity: 1
Claim Your Seller Account
EZ 141 Right Angle SMA Cable Plugs (Male)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EZ 141 Right Angle SMA Cable Plugs (Male) are engineered for precision and reliability in RF applications up to 18 GHz. With a frequency range from DC to 18 GHz and RF-Leakage of over 100 dB, these connectors ensure optimal signal integrity. Featuring beryllium copper construction and PTFE/PFA insulators, they offer exceptional durability and performance. Compliant with industry standards, including stringent DoD procurement requirements, these plugs are ideal for government and institutional use.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y5, Y12
Specifications Cable Type
semi-rigid
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
