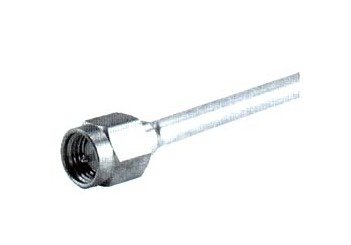

EZ 141 Straight Cable Plugs (Male)
EZ 141 Straight Cable Plugs (Male)
SKU:SMA-a3bff0
High-performance EZ 141 Straight Cable Plugs for reliable RF connections in SMA applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
EZ 141 Straight Cable Plugs (Male)
$49.99
Quantity: 1
Claim Your Seller Account
EZ 141 Straight Cable Plugs (Male)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EZ 141 Straight Cable Plugs are specifically designed for EZ 141 cables, featuring a robust construction with beryllium copper materials for durability and reliable RF performance. With an impedance of 50 ohms and a frequency range up to 18 GHz, these cable plugs ensure low contact resistance, high RF-leakage prevention, and superior dielectric properties. Ideal for SMA Subminiature Connectors applications, these plugs meet stringent industry standards for institutional and government procurement.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y5, Y12
Specifications Cable Type
semi-rigid
Specifications Configuration
pin and insulator
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
