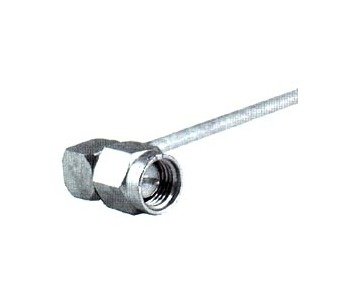

EZ 86 Right Angle SMA Male Cable Plugs

EZ 86 Right Angle SMA Male Cable Plugs

SKU:SMA-eab37c

Experience superior connectivity with EZ 86 Right Angle SMA Male Cable Plugs for up to 18 GHz frequency range. Exceptional performance and durability.

Regular price $99.99
Regular price Sale price $99.99
Sale

Initiate Order

EZ 86 Right Angle SMA Male Cable Plugs

EZ 86 Right Angle SMA Male Cable Plugs

$99.99

Quantity: 1

Claim Your Seller Account

EZ 86 Right Angle SMA Male Cable Plugs

EZ 86 Right Angle SMA Male Cable Plugs

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The EZ 86 Right Angle SMA Male Cable Plugs are precision-engineered for seamless connectivity in SMA Subminiature Connector systems. With a frequency range up to 18 GHz and exceptional RF-Leakage performance, these plugs ensure reliable signal transmission. Crafted with beryllium copper and PTFE/PFA insulators, they exhibit superior durability and stability, meeting stringent industry standards for impedance, voltage, and resistance values. Ideal for high-altitude applications with a wide temperature range from -85 to 329 degrees F.

Product Specifications

Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y3, Y11
Specifications Cable Type
semi-rigid
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
stainless steel
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
