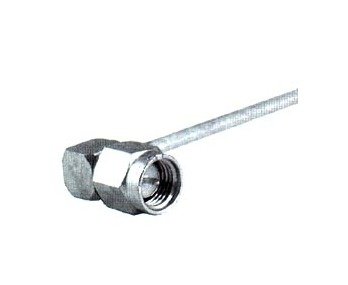

EZ 86 Right Angle SMA Male Cable Plugs
EZ 86 Right Angle SMA Male Cable Plugs
SKU:SMA-e87235
Enhance connectivity with EZ 86 Right Angle SMA Male Cable Plugs for reliable performance. DC - 18 GHz frequency range, >100 dB RF-leakage, and beryllium copper construction.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
EZ 86 Right Angle SMA Male Cable Plugs
$89.99
Quantity: 1
Claim Your Seller Account
EZ 86 Right Angle SMA Male Cable Plugs
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance with the EZ 86 Right Angle SMA Male Cable Plugs. Designed for precision, these plugs feature a frequency range of DC - 18 GHz, RF-leakage of >100 dB, and a working voltage of 250 V rms. With beryllium copper construction, gold plating, and PTFE/PFA insulator material, these cable plugs ensure reliable connectivity and durability. Ideal for applications demanding high-quality RF transmission.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y3, Y11
Specifications Cable Type
semi-rigid
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
