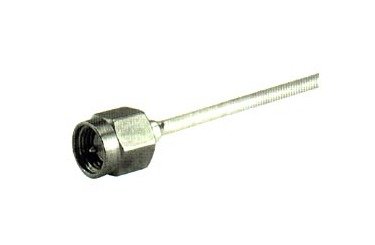

EZ 86 SMA Male Straight Cable Plugs
EZ 86 SMA Male Straight Cable Plugs
SKU:SMA-09d9f7
High-performance SMA Male Straight Cable Plugs for reliable, low RF-Leakage connectivity in DC - 18 GHz applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
EZ 86 SMA Male Straight Cable Plugs
$29.99
Quantity: 1
Claim Your Seller Account
EZ 86 SMA Male Straight Cable Plugs
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EZ 86 SMA Male Straight Cable Plugs are precision-engineered to meet the demanding requirements of high-frequency applications, with a frequency range of DC - 18 GHz. Constructed with hardened beryllium copper for durability, these plugs ensure reliable connectivity and low RF-Leakage. With compliance to industry standards, such as impedance of 50 ohms and a working voltage of 250 V rms, these cable plugs are ideal for institutional and government procurement needs.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y3, Y11
Specifications Cable Type
semi-rigid
Specifications Configuration
pin and insulator
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
stainless steel
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
