EZ-Swet 148-0 Series 2.5" Pipe Diameter Mechanical Line Stopper Plug
EZ-Swet 148-0 Series 2.5" Pipe Diameter Mechanical Line Stopper Plug
SKU:HIG-8188a6
Repair plumbing systems efficiently with the EZ-Swet 148-0 Series 2.5" Pipe Diameter Mechanical Line Stopper Plug. Features immediate water system control, cost-effectiveness, and maximum 60 psig water pressure.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
EZ-Swet 148-0 Series 2.5" Pipe Diameter Mechanical Line Stopper Plug
$89.99
Quantity: 1
Claim Your Seller Account
EZ-Swet 148-0 Series 2.5" Pipe Diameter Mechanical Line Stopper Plug
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EZ-Swet 148-0 Series 2.5" Pipe Diameter Mechanical Line Stopper Plug is a reliable solution for repairing plumbing systems without complete draining. Built with a 1/2" cavity for water or air drainage, this plug features a hose connection for directing water flow during repairs. Made from professional-grade materials, it offers immediate water system control, cost-effectiveness, and maximum 60 psig water pressure. Ideal for contractors servicing hotels, motels, and apartments, this plug ensures quick and efficient repairs with minimal downtime.

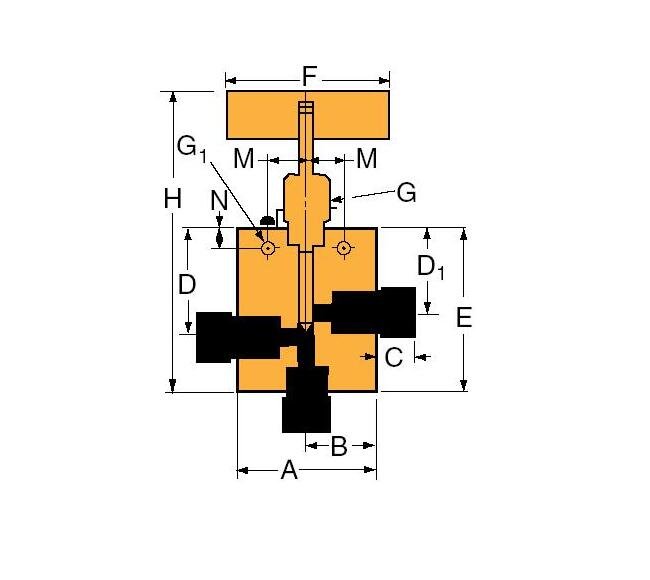

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
1.69 in | 42.93 mm
Specifications E Height
2.38 in | 60.45 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.75 in | 120.65 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.08
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
