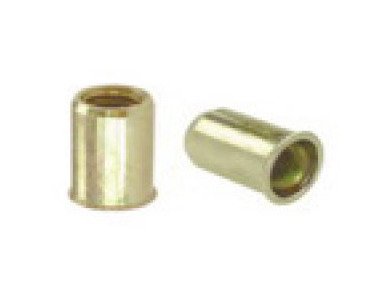

F-Series 10.4mm Open End Reduced Countersunk Head Rivet Nut
F-Series 10.4mm Open End Reduced Countersunk Head Rivet Nut
SKU:FSE-cf8376
Durable F-Series 10.4mm Rivet Nut with Small Countersunk Head. Steel with Yellow Zinc Plating. Ideal for Secure Fastening.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
F-Series 10.4mm Open End Reduced Countersunk Head Rivet Nut
$19.99
Quantity: 1
Claim Your Seller Account
F-Series 10.4mm Open End Reduced Countersunk Head Rivet Nut
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The F-Series 10.4mm Open End Reduced Countersunk Head Rivet Nut by Ornit is a top-quality fastening solution ideal for various applications. Constructed from durable steel with a yellow zinc plated finish, it offers exceptional corrosion resistance and long-lasting performance. With a minimum grip range of 0.5mm and a maximum of 1.5mm, this rivet nut provides a secure and reliable hold. Its small reduced countersunk head design ensures a flush finish, perfect for applications where space is limited. For added versatility, stainless steel and aluminum options are available, along with serration style variations.

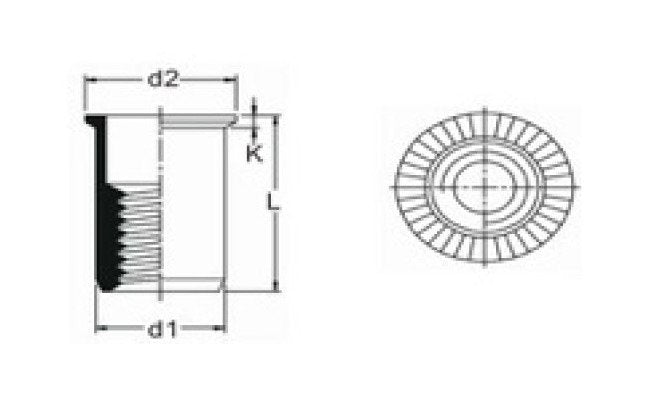

Product Specifications
Dimensions Dimension D1
6.32 mm
Dimensions Dimension D2
7.2 mm
Dimensions Dimension K
0.7 mm
Dimensions Dimension L
10.4 mm
Dimensions Hole Size
6.4 mm
Dimensions Maximum Grip Range
1.5 mm
Dimensions Minimum Grip Range
0.5 mm
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Reduced Countersunk Head (Small)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M4
