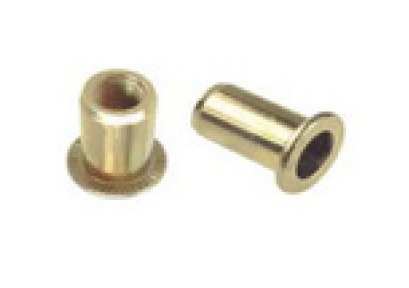

F-Series 13.5mm Cylindrical Head Rivet Nut

Name: F-Series 13.5mm Cylindrical Head Rivet Nut
Brand: Ornit USA
SKU: FSE-e061d8
Price: 24.99 USD
Availability: OutOfStock

SKU:FSE-e061d8

High-quality F-Series 13.5mm Cylindrical Head Rivet Nut by Ornit. Steel construction with yellow zinc plating. Versatile and durable fastening solution.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The F-Series 13.5mm Cylindrical Head Rivet Nut by Ornit is a top-quality fastening solution designed for durability and precision. Constructed from steel with a yellow zinc plated finish, it offers a secure grip range from 0.5mm to 3.0mm. With a 7.0mm hole size and dimensions meeting industry standards, this rivet nut is suitable for various applications. Available in stainless steel and aluminum options, it ensures versatility and reliability for all your fastening needs.

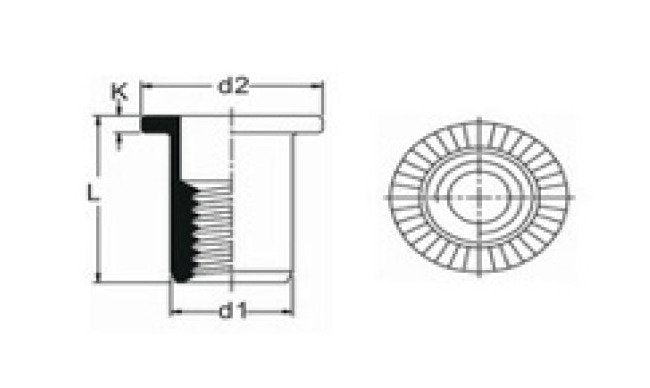

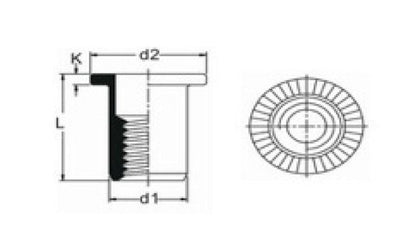

Product Specifications

Dimensions Dimension D1

6.9 mm

Dimensions Dimension D2

10.0 mm

Dimensions Dimension K

1.2 mm

Dimensions Dimension L

13.5 mm

Dimensions Hole Size

7.0 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Square style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

F-Series 13.5mm Cylindrical Head Rivet Nut
