F-Series Small Rivet Nut - 12.0mm Open End Reduced Countersunk Head

Name: F-Series Small Rivet Nut - 12.0mm Open End Reduced Countersunk Head
Brand: Ornit USA
SKU: FSE-686700
Price: 24.99 USD
Availability: OutOfStock

SKU:FSE-686700

Premium F-Series Small Rivet Nut - Ideal for precise and secure installations in industrial settings

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

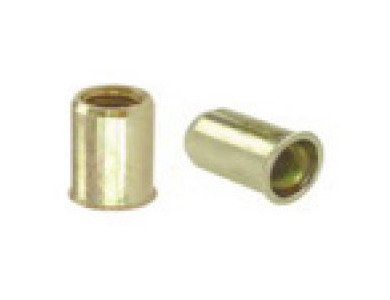

The F-Series Small Rivet Nut features a durable steel construction with a Yellow Zinc Plated finish, ensuring superior strength and corrosion resistance. With a Thread Size of M5 and dimensions designed for precision installations, this product offers a Minimum Grip Range of 0.5mm to a Maximum Grip Range of 2.0mm. Perfect for a wide range of industrial applications, the small Reduced Countersunk Head design provides a secure and flush fit. Available in Stainless Steel & Aluminum variants with customizable serration styles to meet diverse needs.

Product Specifications

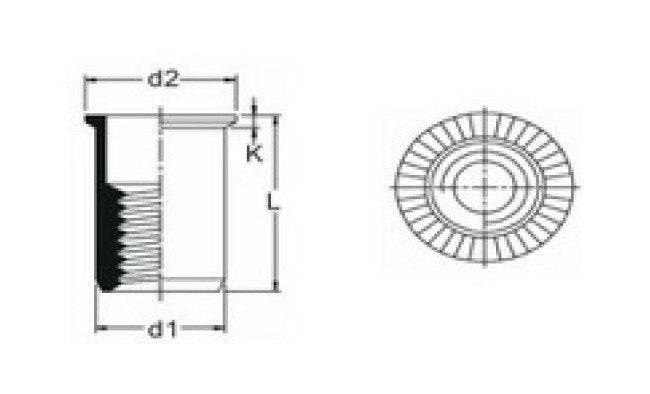

Dimensions Dimension D1

7.11 mm

Dimensions Dimension D2

8.0 mm

Dimensions Dimension K

0.7 mm

Dimensions Dimension L

12.0 mm

Dimensions Hole Size

7.2 mm

Dimensions Maximum Grip Range

2.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Reduced Countersunk Head (Small)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

F-Series Small Rivet Nut - 12.0mm Open End Reduced Countersunk Head
