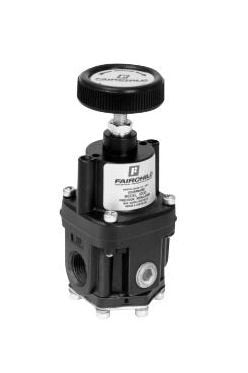

Fairchild 1000 No Bleed Design Precision Pressure Regulator
Fairchild 1000 No Bleed Design Precision Pressure Regulator
SKU:MOD-a42a59
Achieve precision pressure control with the Fairchild 1000 Regulator, ideal for industrial applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Fairchild 1000 No Bleed Design Precision Pressure Regulator
$199.99
Quantity: 1
Claim Your Seller Account
Fairchild 1000 No Bleed Design Precision Pressure Regulator
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Fairchild 1000 No Bleed Design Precision Pressure Regulator is engineered to accurately reduce high input pressure to a precise lower output pressure, ensuring stability under any operating condition. With a flow capacity of 50 ft³/min, exhaust capacity of 8 ft³/min, and sensitivity of 0.5 Inch/WC, this regulator guarantees reliable performance. Its variable pressure supply (<0.1 psig) and maximum pressure supply of 250 psig make it suitable for a wide range of industrial control applications. Compliant with industry standards, this regulator offers exceptional quality and versatility for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Dimensions
2-1/8 x 2-1/8 x 5 in | 54 x 54 x 127 mm
Specifications Exhaust Capacity
8 ft³/min | 13.6 m³/h
Specifications Flow Capacity
50 ft³/min
Specifications Flow Capacity At Supply Of 100 Pounds Per Square
85 m³/h
Specifications Maximum Pressure Supply
250 psig | 1700 kPa
Specifications National Pipe Thread Size
1/4 in | 3/8 in
Specifications Range
0.5 to 10 psig | 0.5 to 30 psig | 1 to 60 psig | 2 to 150 psig | 3.5 to 70 kPa | 3.5 to 200 kPa | 7 to 400 kPa | 15 to 1000 kPa
Specifications Sensitivity
0.5 Inch/WC | 1.27 cm
Specifications Variable Pressure Supply
<0.1 psig | <0.7 kPa
