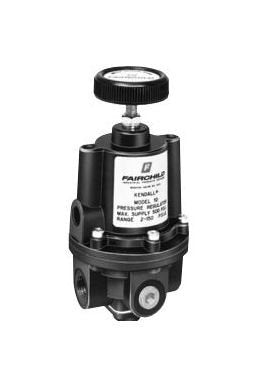

Fairchild Model 10 Precision Pneumatic Regulator
Fairchild Model 10 Precision Pneumatic Regulator
SKU:MOD-0e095e
Achieve precision pressure control with the Fairchild Model 10 Pneumatic Regulator. Ideal for industrial applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Fairchild Model 10 Precision Pneumatic Regulator
$149.99
Quantity: 1
Claim Your Seller Account
Fairchild Model 10 Precision Pneumatic Regulator
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Fairchild Model 10 Pneumatic Precision Regulator excels at converting uncontrolled high input pressures to stable lower output pressures with precision. Engineered for reliability, this regulator offers a wide array of pressure ranges and flow capacities, making it ideal for instrument and industrial control applications. Fairchild's commitment to quality ensures compliance with strict industry standards, meeting the demands of precision-driven operations effortlessly.
Product Specifications
Specifications Diameter
76 mm
Specifications Exhaust Capacity
5.5 ft³/min | 9.4 m³/h
Specifications Flow Capacity
40 ft³/min
Specifications Flow Capacity At Supply Of 100 Pounds Per Square
68 m³/h
Specifications Height
165 mm
Specifications Maximum Pressure Supply
500 psig | 3500 kPa
Specifications National Pipe Thread Size
1/2 in | 1/4 in | 3/8 in
Specifications Range
0 to 2 psig | 0 to 10 psig | 0.5 to 30 psig | 1 to 20 psig | 1 to 60 psig | 2 to 150 psig | 3 to 200 psig | 5 to 300 psig | 5 to 400 psig | 0 to 15 kPa | 0 to 70 kPa | 0 to 150 kPa | 3 to 200 kPa | 10 to 400 kPa | 15 to 1000 kPa | 20 to 1500 kPa | 35 to 2100 kPa | 35 to 2800 kPa
Specifications Sensitivity
0.125 Inch/WC | 0.32 cm
Specifications Variable Pressure Supply
<0.1 psig | <0.7 kPa
