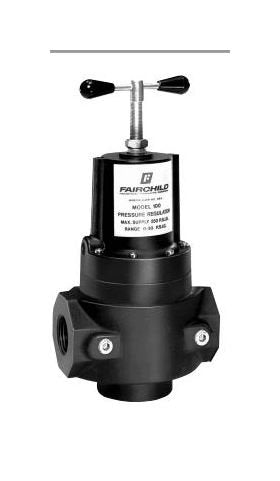

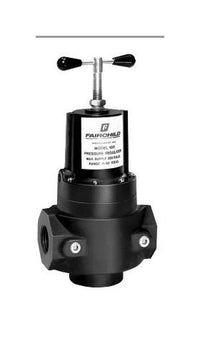

Fairchild Model 100 High Flow Pressure Regulators

Name: Fairchild Model 100 High Flow Pressure Regulators
Brand: B & B Instruments, Inc.
SKU: MOD-9a3d45
Price: 299.99 USD
Availability: OutOfStock

SKU:MOD-9a3d45

Achieve precision pressure control with the Fairchild Model 100 Regulators. Ideal for industrial applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Designed for precision control, the Fairchild Model 100 High Flow Pressure Regulators are expertly engineered to reduce high input pressure to a regulated output pressure with exceptional accuracy. With a wide range of pressure options and high flow capacities, these regulators are ideal for instrument and industrial control applications. Trust in Fairchild's commitment to quality and performance excellence for all your pressure regulation needs.

Product Specifications

Specifications Diameter

133 mm

Specifications Exhaust Capacity

44 ftÂ³/min | 75 mÂ³/h

Specifications Flow Capacity

1500 ftÂ³/min

Specifications Flow Capacity At Supply Of 100 Pounds Per Square

2550 mÂ³/h

Specifications Height

286 mm

Specifications Maximum Pressure Supply

250 psig | 1700 kPa

Specifications National Pipe Thread Size

1 in | 1-1/2 in

Specifications Range

Specifications Sensitivity

0.5 Inch/WC | 1.27 cm

Specifications Variable Pressure Supply

<0.5 psig | <3.5 kPa

Fairchild Model 100 High Flow Pressure Regulators
