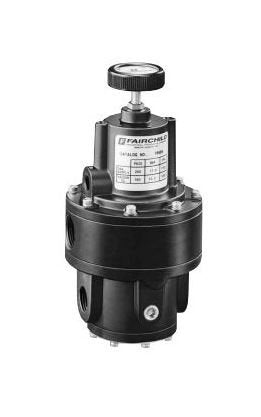

Fairchild Model 1600A High Flow Vacuum Regulator

Name: Fairchild Model 1600A High Flow Vacuum Regulator
Brand: B & B Instruments, Inc.
SKU: MOD-0188e8
Price: 249.99 USD
Availability: OutOfStock

SKU:MOD-0188e8

Achieve precise pressure control with the Fairchild Model 1600A Regulator's high flow capacity and exceptional sensitivity.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Fairchild Model 1600A High Flow Vacuum Regulator is expertly designed to precisely reduce high input pressure to regulated output pressure levels. With a remarkable flow capacity, exhaust capacity, and enhanced sensitivity, this regulator assures optimal performance under various conditions. Meeting stringent precision device standards, this regulator is ideal for instrument and industrial control applications.

Product Specifications

Specifications Diameter

114 mm

Specifications Exhaust Capacity

20 ftÂ³/min | 34 mÂ³/h

Specifications Flow Capacity At 29 Inch In Vacuum With Inlet Por

28 ftÂ³/min | 48 mÂ³/h

Specifications Flow Capacity At Positive Flow

150 ftÂ³/min | 255 mÂ³/h

Specifications Height

241 mm

Specifications Maximum Pressure Supply

250 psig | 1700 kPa

Specifications National Pipe Thread Size

3/8 x 1/2 x 3/4 in

Specifications Sensitivity

1.0 Inch/WC | 2.54 cm

Specifications Vacuum Range

10 kPa | 30 kPa | 150 kPa

Specifications Variable Pressure Supply

<0.1 psig | <0.7 kPa

Fairchild Model 1600A High Flow Vacuum Regulator
