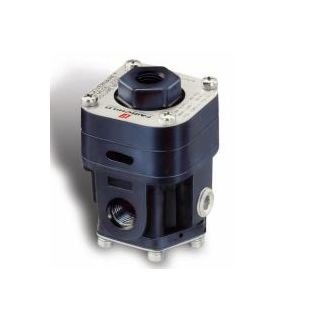

Fairchild Model 2000 Precision Volume Boosters

Fairchild Model 2000 Precision Volume Boosters

SKU:MOD-7501e5

Achieve precise control and enhanced efficiency with Fairchild Model 2000 Precision Volume Boosters.

Regular price $249.99
Regular price Sale price $249.99
Sale

Initiate Order

Fairchild Model 2000 Precision Volume Boosters

Fairchild Model 2000 Precision Volume Boosters

$249.99

Quantity: 1

Claim Your Seller Account

Fairchild Model 2000 Precision Volume Boosters

Fairchild Model 2000 Precision Volume Boosters

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Fairchild Model 2000 Precision Volume Boosters are pneumatic devices designed to accurately reproduce low flow control signals with higher regulated output pressure. These boosters offer exceptional accuracy, sensitivity, fast response, stability, and drift-free settings, making them ideal for instrument or general industrial control applications. With various pressure ranges and flow capacities available, these boosters ensure precise control and efficiency in pneumatic systems.

Product Specifications

Specifications Dimensions
2 x 2 x 3-1/4 in | 54 x 54 x 83 mm
Specifications Exhaust Capacity
16 ft³/min | 27.2 m³/h
Specifications Flow Capacity
40 ft³/min
Specifications Flow Capacity At Supply Of 100 Pounds Per Square
68 m³/h
Specifications Maximum Pressure Supply
250 psig | 1700 kPa
Specifications Maximum Signaloutput Pressure
150 psig | 1000 kPa
Specifications National Pipe Thread Size
1/4 in | 3/8 in
Specifications Ratio Available
1:1 | 1:1.6
Specifications Sensitivity
<1.0 Inch/WC | 2.54 cm
Specifications Variable Pressure Supply
<0.1 psig | <0.7 kPa
