Fairchild Model 200XLR Flow Boosters

Name: Fairchild Model 200XLR Flow Boosters
Brand: B & B Instruments, Inc.
SKU: MOD-fe2d01
Price: 599.99 USD
Availability: OutOfStock

SKU:MOD-fe2d01

Enhance control signals with precision using Fairchild Model 200XLR Flow Boosters, ensuring reliable and stable output pressures in industrial applications.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

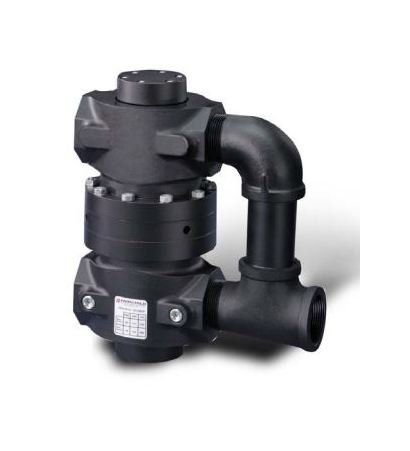

The Fairchild Model 200XLR High Forward and Exhaust Flow Boosters are precision pneumatic devices designed to reproduce low flow control signals into higher regulated flow output pressures. With a robust construction meeting the strict requirements of accuracy, sensitivity, stability, and fast response, these boosters offer a reliable performance. Featuring high forward and exhaust flow capacities, variable pressure supply, and a wide range of pressure options, these boosters are ideal for instrument and industrial control applications.

Product Specifications

Specifications Dimensions

9-1/2 x 5-1/2 x 9-3/4 in | 241 x 140 x 248 mm

Specifications Exhaust Capacity

325 ftÂ³/min | 552.5 mÂ³/h

Specifications Flow Capacity

1500 ftÂ³/min

Specifications Flow Capacity At Supply Of 100 Pounds Per Square

2550 mÂ³/h

Specifications Maximum Pressure Supply

250 psig | 1700 kPa

Specifications Maximum Signaloutput Pressure

150 psig | 1000 kPa

Specifications National Pipe Thread Size

1-1/2 in

Specifications Ratio Available

1:1

Specifications Sensitivity

1.0 Inch/WC | 2.54 cm

Specifications Variable Pressure Supply

<0.5 psig | <3.5 kPa

Fairchild Model 200XLR Flow Boosters
