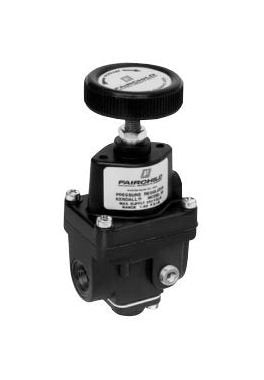

Fairchild Model 30 Precision Regulator
Fairchild Model 30 Precision Regulator
SKU:MOD-568052
Achieve precision pressure control with the Fairchild Model 30 Precision Regulator. Ideal for industrial applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Fairchild Model 30 Precision Regulator
$149.99
Quantity: 1
Claim Your Seller Account
Fairchild Model 30 Precision Regulator
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Fairchild Model 30 Midget Precision Regulator is designed to efficiently reduce high input pressures to a precise lower output pressure. With a superior engineering standard, this regulator guarantees accuracy and reliability for various industrial applications. Its wide range of pressure settings, high flow capacity, and compact dimensions make it an ideal choice for instrument and industrial control needs.
Product Specifications
Specifications Dimensions
2-1/2 x 1-3/4 x 5-1/4 in | 57 x 44 x 133 mm
Specifications Exhaust Capacity
2.0 ft³/min | 3.4 m³/h
Specifications Flow Capacity
40 ft³/min
Specifications Flow Capacity At Supply Of 100 Pounds Per Square
68 m³/h
Specifications Maximum Pressure Supply
250 psig | 1700 kPa
Specifications National Pipe Thread Size
1/4 in | 3/8 in
Specifications Range
0 to 2 psig | 0 to 10 psig | 0.5 to 30 psig | 1 to 20 psig | 1 to 60 psig | 2 to 100 psig | 0 to 15 kPa | 0 to 70 kPa | 3 to 200 kPa | 10 to 400 kPa | 15 to 700 kPa
Specifications Sensitivity
0.25 Inch/WC | 0.63 cm
Specifications Variable Pressure Supply
<0.2 psig | <1.4 kPa
