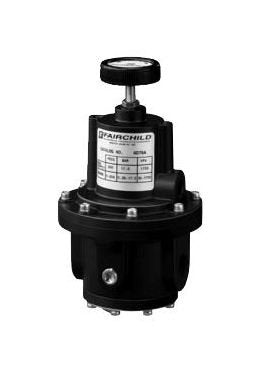

Fairchild Model 4000A High Flow No Bleed Pressure Regulator
Fairchild Model 4000A High Flow No Bleed Pressure Regulator
SKU:MOD-ae5e3c
Achieve precise pressure regulation with the Fairchild Model 4000A High Flow No Bleed Pressure Regulator. Ideal for instrument and industrial control applications.
Regular price
$299.00
Regular price
Sale price
$299.00
Unit price
per
Initiate Order
Fairchild Model 4000A High Flow No Bleed Pressure Regulator
$299.00
Quantity: 1
Claim Your Seller Account
Fairchild Model 4000A High Flow No Bleed Pressure Regulator
$299.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Fairchild Model 4000A High Flow No Bleed Design Pneumatic Pressure Regulator is engineered to reduce unregulated high input pressures to precise lower output pressures, ensuring stability under various operating conditions. With a flow capacity of 150 ft³/min, exhaust capacity of 40 ft³/min, and a sensitivity of 0.5 Inch/WC, this regulator offers exceptional performance for instrument and industrial control applications. Its range of 0.5 to 250 psig and precise engineering make it a reliable choice for achieving optimal pressure regulation. Trust in Fairchild's commitment to quality and precision.
Product Specifications
Specifications Diameter
114 mm
Specifications Exhaust Capacity
40 ft³/min | 65.2 m³/h
Specifications Flow Capacity
150 ft³/min
Specifications Flow Capacity At Supply Of 100 Pounds Per Square
255 m³/h
Specifications Height
203 mm
Specifications Maximum Pressure Supply
250 psig | 1700 kPa
Specifications National Pipe Thread Size
1/2 in | 3/4 in | 3/8 in
Specifications Range
0.5 to 10 psig | 0.5 to 30 psig | 1 to 60 psig | 2 to 150 psig | 5 to 250 psig | 3.5 to 70 kPa | 3.5 to 200 kPa | 7 to 400 kPa | 14 to 1000 kPa | 35 to 17000 kPa
Specifications Sensitivity
0.5 Inch/WC | 1.27 cm
Specifications Variable Pressure Supply
<0.1 psig | <0.7 kPa
