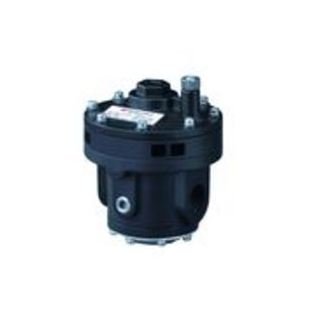

Fairchild Model 4500A High Flow No Bleed Design Boosters
Fairchild Model 4500A High Flow No Bleed Design Boosters
SKU:MOD-147702
Enhance control signals with precision using Fairchild Model 4500A Boosters. Maximum pressure supply of 250 psig, multiple ratio options.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Fairchild Model 4500A High Flow No Bleed Design Boosters
$289.99
Quantity: 1
Claim Your Seller Account
Fairchild Model 4500A High Flow No Bleed Design Boosters
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Fairchild Model 4500A High Flow No Bleed Design Boosters are precision pneumatic air volume boosters designed to reproduce low flow control signals with higher regulated output pressure. These boosters ensure accuracy, sensitivity, fast response, stability, and low output droop. With a maximum pressure supply of 250 psig and various ratio options available, they are versatile for instrument and industrial control applications.
Product Specifications
Specifications Diameter
4-1/2 in | 114 mm
Specifications Exhaust Capacity
40 ft³/min | 65.2 m³/h
Specifications Flow Capacity
150 ft³/min
Specifications Flow Capacity At Supply Of 100 Pounds Per Square
255 m³/h
Specifications Height
5-1/4 in | 133 mm
Specifications Maximum Pressure Supply
250 psig | 1700 kPa
Specifications Maximum Signaloutput Pressure
Varies
Specifications National Pipe Thread Size
1/2 in | 3/4 in | 3/8 in
Specifications Ratio Available
1:1 | 1:2 | 1:3 | 2:1 | 3:1
Specifications Sensitivity
1.0 to 3.0 Inch/WC | 2.54 to 7.62 cm
Specifications Variable Pressure Supply
<0.1 to 0.3 psig | 0.7 to 2.1 kPa
