Fairchild Model 63 Pneumatic Filter Regulators
Fairchild Model 63 Pneumatic Filter Regulators
SKU:MOD-4f2848
Ensure precision pressure control with the Fairchild Model 63 Regulators, ideal for instrument and industrial applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Fairchild Model 63 Pneumatic Filter Regulators
$149.99
Quantity: 1
Claim Your Seller Account
Fairchild Model 63 Pneumatic Filter Regulators
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

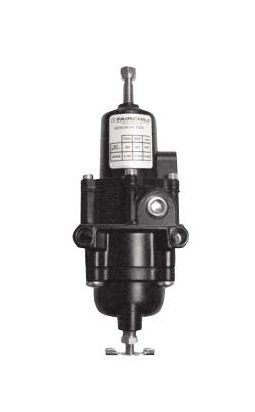

The Fairchild Model 63 Pneumatic Filter Regulators provide precise pressure regulation, reducing high input pressure to a controlled output, essential for instrument and industrial control applications. With a flow capacity of 25 ft³/min and a sensitivity of 1.0 Inch/WC, these regulators ensure accuracy and efficiency in various operating conditions. Meeting strict engineering standards, they offer a range from 0.5 to 30 psig, accompanied by a compact design of 2 x 3 x 7-3/4 in for easy integration.
Product Specifications
Specifications Dimensions
2 x 3 x 7-3/4 in | 76 x 76 x 197 mm
Specifications Exhaust Capacity
0.8 ft³/min | 1.36 m³/h
Specifications Flow Capacity
25 ft³/min
Specifications Flow Capacity At Supply Of 100 Pounds Per Square
42.5 m³/h
Specifications Maximum Pressure Supply
250 psig | 1700 kPa
Specifications National Pipe Thread Size
1/4 in
Specifications Range
0.5 to 30 psig | 1 to 60 psig | 2 to 100 psig | 3 to 200 kPa | 7 to 400 kPa | 15 to 700 kPa
Specifications Sensitivity
1.0 Inch/WC | 2.54 cm
Specifications Variable Pressure Supply
<1.25 psig | <9 kPa
