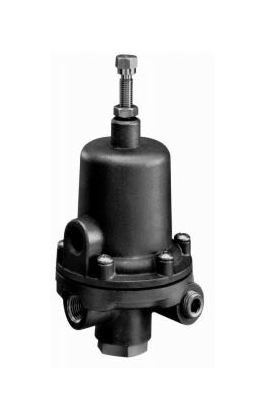

Fairchild Model 66 Stainless Steel Pneumatic Regulator

Name: Fairchild Model 66 Stainless Steel Pneumatic Regulator
Brand: B & B Instruments, Inc.
SKU: MOD-160c88
Price: 189.99 USD
Availability: OutOfStock

SKU:MOD-160c88

Experience precise pressure control with the Fairchild Model 66 Regulator. Ideal for industrial and instrument applications.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Fairchild Model 66 Pneumatic Stainless Steel Regulator is a precision device designed to reduce unregulated high input pressures to lower output pressures, ensuring consistent pressure control under varied operating conditions. With a robust engineering design and manufacturing excellence, this regulator offers superior performance for instrument and industrial control applications. Its extensive pressure range options, high flow capacity, and precise sensitivity make it an ideal choice for demanding environments.

Product Specifications

Specifications Diameter

3 x 6-1/4 in

Specifications Exhaust Capacity

1.0 ftÂ³/min | 2.54 mÂ³/h

Specifications Flow Capacity

17 ftÂ³/min

Specifications Flow Capacity At Supply Of 100 Pounds Per Square

28.9 mÂ³/h

Specifications Height

159 mm

Specifications Maximum Pressure Supply

500 psig | 3500 kPa

Specifications National Pipe Thread Size

1/4 in

Specifications Range

Specifications Sensitivity

1.0 Inch/WC | 2.54 cm

Specifications Variable Pressure Supply At 25 Pounds Per Square

<0.1 psig | <0.7 kPa

Fairchild Model 66 Stainless Steel Pneumatic Regulator
