Fairchild Model 81 Precision Multi-Stage Pressure Regulators
Fairchild Model 81 Precision Multi-Stage Pressure Regulators
SKU:MOD-52292e
Achieve precise pressure control with Fairchild Model 81 Regulators, ideal for instrument & industrial applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Fairchild Model 81 Precision Multi-Stage Pressure Regulators
$149.99
Quantity: 1
Claim Your Seller Account
Fairchild Model 81 Precision Multi-Stage Pressure Regulators
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

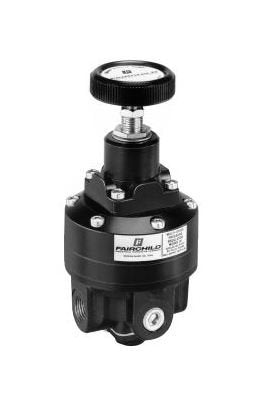

The Fairchild Model 81 Multi-Stage Pressure Regulators excel in reducing high input pressure to precise lower output pressure levels for instrument and industrial control applications. With a flow capacity of 50 ft³/min and a sensitivity of <0.1 Inch/WC, these regulators offer outstanding performance and accuracy. Meeting the highest standards of quality engineering, they provide a wide range of pressure options to suit diverse industrial needs.
Product Specifications
Specifications Diameter
76 mm
Specifications Exhaust Capacity
5.5 ft³/min | 9.4 m³/h
Specifications Flow Capacity
50 ft³/min
Specifications Flow Capacity At Supply Of 100 Pounds Per Square
85 m³/h
Specifications Height
159 mm
Specifications Maximum Pressure Supply At 2 Pounds Per Square In
100 psig | 700 kPa
Specifications Maximum Pressure Supply At 5 Pounds Per Square In
100 psig
Specifications Maximum Pressure Supply For All Ranges
150 psig | 1000 kPa
Specifications National Pipe Thread Size
1/4 in
Specifications Range
0 to 2 psig | 0 to 5 psig | 0 to 20 psig | 0.5 to 60 psig | 0.5 to 100 psig | 1 to 20 psig | 0 to 14 kPa | 0 to 35 kPa | 3 to 150 kPa | 3.5 to 400 kPa | 3.5 to 700 kPa
Specifications Sensitivity
<0.1 Inch/WC | <0.254 cm
Specifications Variable Pressure Supply
<0.2 psig | <1.4 kPa
Specifications Variable Pressure Supply At 5 Pounds Per Square I
700 kPa
