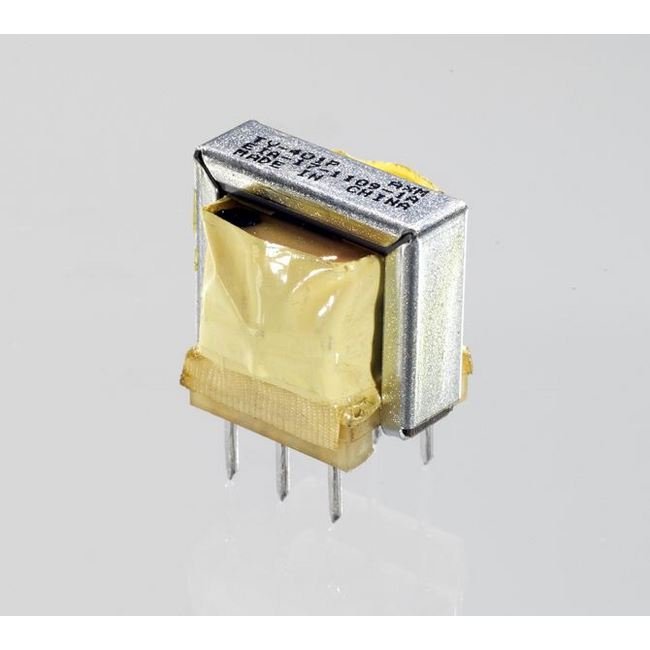

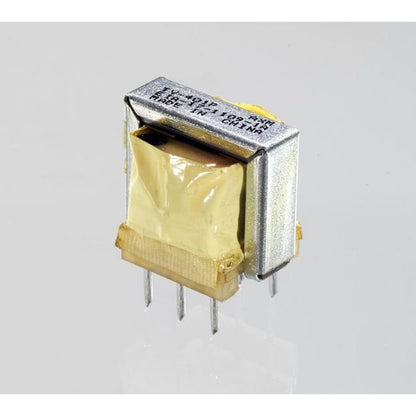

• FCC Compliant Data/Voice Coupling Transformer - Image 1

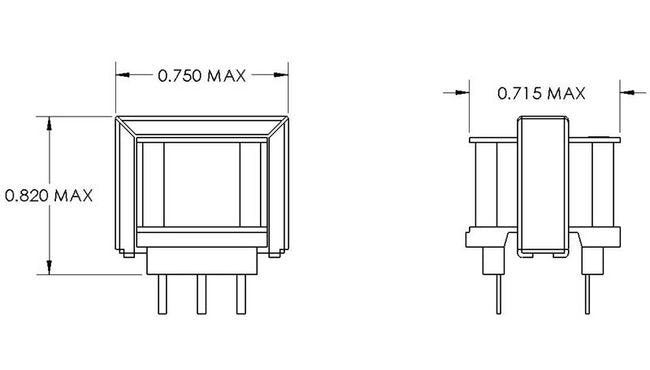

  • FCC Compliant Data/Voice Coupling Transformer - Image 2
  • FCC Compliant Data/Voice Coupling Transformer - Image 3
1 3
Triad Magnetics →

FCC Compliant Data/Voice Coupling Transformer

FCC Compliant Data/Voice Coupling Transformer

AUD-85c2b8

Meet FCC Part 68 standards with our Data/Voice Coupling Transformer featuring 60 dB longitudinal balance, 1500 V dielectric strength, and 600 Ohm impedance.

$49.99
$49.99
Sale

Initiate Order

FCC Compliant Data/Voice Coupling Transformer

FCC Compliant Data/Voice Coupling Transformer

$49.99

Quantity: 1

Claim Your Seller Account

FCC Compliant Data/Voice Coupling Transformer

FCC Compliant Data/Voice Coupling Transformer

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Data/Voice Coupling Transformer from our Triad telecommunications line is a versatile solution meeting FCC Part 68 standards for access over private lines or the telephone network. Ideal for impedance matching, isolation, line balancing, and more, this transformer features a dielectric strength of 1500 V, longitudinal balance up to 60 dB, and a frequency range of 300 to 3500 Hz. With primary and secondary impedances of 600 Ohms, maximum DC current of 90 mA, and typical insertion loss of 1.75 dB, it ensures reliable performance in various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications 0
Bridging Circuits | Hybrid Circuits | Impedance Matching | Isolation | Line Balancing | Repeat Coil
Specifications Dielectric Strength Fcc 68304
1500 V
Specifications Frequency Range Data
800 to 3500 Hz
Specifications Frequency Range Datavoice
300 to 3500 Hz
Specifications Industry Standards
FCC 68.304 for Dielectric Strength | FCC 68.310 for Longitudinal Balance
Specifications Longitudinal Balance Frequency
1000 to 4000 Hz at 45 dB | 200 to 1000 Hz at 60 dB
Specifications Maximum Input Level
5 mW
Specifications Max Dc Current
90 mA
Specifications Min Longitudinal Balance
45 dB | 60 dB
Specifications Primary Impedance
600 Ohm
Specifications Schematic
TY-401P Schematic
Specifications Secondary Impedance
600 Ohm
Specifications Frequency Response
±0.5 dB
Specifications Insertion Loss
1.75 dB
Specifications Return Loss
13 dB
Technical Notes 0
Primary connections shown on left side of schematics.
