Experience unparalleled performance with our Data/Voice Hybrid Transformer, designed to meet FCC Part 68 standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
FCC Part 68 Compliant Data/Voice Hybrid Transformer
$59.99
Quantity: 1
Claim Your Seller Account
FCC Part 68 Compliant Data/Voice Hybrid Transformer
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

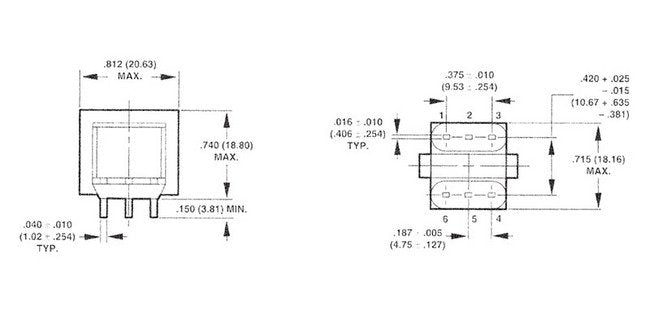

The Data/Voice Hybrid Single Transformer from our Data/Voice Coupling Transformers line is expertly crafted to meet the stringent requirements of access over leased private lines or through the dial-up switched telephone network. With primary and secondary impedance of 600 Ohm and 2400 Ohm respectively, this transformer excels in impedance matching, isolation, repeat coil, line balancing, bridging, and hybrid circuits. It boasts a trans-hybrid loss of 50 dB, dielectric strength of 1500 V, and typical insertion loss of 0.80 dB. Designed to operate within a frequency range of 300 to 3500 Hz, this transformer ensures superior performance for diverse applications. Primary connections are intuitively arranged on the left side of the schematic, aligning with industry standards such as FCC 68.304 for dielectric strength and FCC 68.310 for longitudinal balance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Bridging Circuits | Hybrid Circuits | Impedance Matching | Isolation | Line Balancing | Repeat Coil
Specifications Dielectric Strength Fcc 68304
1500 V
Specifications Frequency Range Data
800 to 3500 Hz
Specifications Frequency Range Datavoice
300 to 3500 Hz
Specifications Industry Standards
FCC 68.304 for Dielectric Strength | FCC 68.310 for Longitudinal Balance
Specifications Longitudinal Balance Frequency
1000 to 4000 Hz at 45 dB | 200 to 1000 Hz at 60 dB
Specifications Maximum Input Level
5 mW
Specifications Min Longitudinal Balance
45 dB | 60 dB
Specifications Primary Impedance
600 Ohm
Specifications Schematic
Schematic 9
Specifications Secondary Impedance
600 Ohm | 2400 Ohm
Specifications Trans Hybrid Loss
50 dB
Specifications Insertion Loss
0.80 dB
Specifications Return Loss
30 dB
Technical Notes 0
Primary connections shown on left side of schematics.
