FCP-LR & FCP-PL Series Foot Operated Hydraulic Pumps
FCP-LR & FCP-PL Series Foot Operated Hydraulic Pumps
SKU:HYD-3ec1d4
Efficient 2-speed foot-operated hydraulic pumps for low to high-pressure applications up to 20,000 PSI, ideal for equipment with built-in reservoirs.
Regular price
$854.00
Regular price
Sale price
$854.00
Unit price
per
Initiate Order
FCP-LR & FCP-PL Series Foot Operated Hydraulic Pumps
$854.00
Quantity: 1
Claim Your Seller Account
FCP-LR & FCP-PL Series Foot Operated Hydraulic Pumps
$854.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

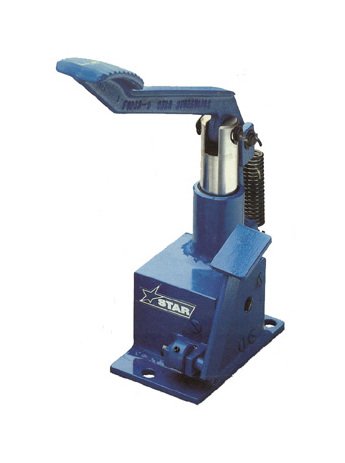

The FCP-LR & FCP-PL Series Foot Operated Hydraulic Pumps are designed for equipment with built-in reservoirs, offering 2-speed functionality for both low and high-pressure applications. These pumps feature adjustable overload relief and manual pressure release valves, ensuring precise operation at pressures up to 20,000 PSI. With base or flange mounting options, steel pump bodies, and hard chrome plated pistons, these pumps are durable and efficient for various industrial needs.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Foot Lever Load Per 1000 Psi
23.0 lb
Specifications Inlet Port Size Nptf
3/8
Specifications List Price
854 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
5000 psi
Specifications Mounting
Base Mounted
Specifications Net Weight
23 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 1/4-1/2 in
Specifications Series
FCP-LR
Specifications Volume Per Stroke Large Piston To 300 Psi Approx
1.84 in³
Specifications Volume Per Stroke Small Piston Above 300 Psi Appr
0.29 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
