FCTR Cast Iron Ball Valve Class 125 - Full Port
FCTR Cast Iron Ball Valve Class 125 - Full Port
SKU:VAL-edaaf8
Durable FCTR Cast Iron Ball Valve with CF8 stainless steel trim, blowout proof stem, and PTFE seals. Ideal for industrial use.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
FCTR Cast Iron Ball Valve Class 125 - Full Port
$149.99
Quantity: 1
Claim Your Seller Account
FCTR Cast Iron Ball Valve Class 125 - Full Port
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The FCTR Cast Iron Ball Valve Class 125 is engineered for rugged industrial applications, featuring a cast iron body, CF8 stainless steel trim, blowout proof stem, and PTFE seats and seals. This full port valve offers reliable performance at 125 PSI for saturated steam up to 353°F and 200 PSI for non-shock cold water, oil, or gas. With flat face flanged ends and compliance with MSS SP-72, ASME B16.1, and ASME B16.10 standards, this valve ensures durability and efficiency in demanding environments.
Product Specifications

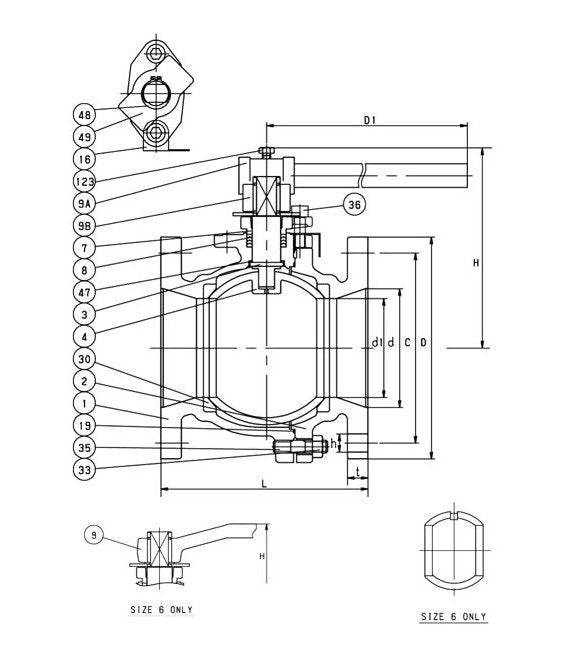

Material List 0
No. Name of Part Specification 1 Body Cast Iron (A126 Cl. B) 2 Body Caps Cast Iron (A126 Cl. B) 3 Stem Stainless Steel (A276 Type 304) 4 Ball Stainless Steel (A276, Type 304 or A351 Gr. CF8) 7 Gland Ductile Iron 8 Gland Packing (1 Set) Ptfe 9 Handle Ductile Iron 9A Handle Bar Carbon Steel (6"-10") 9B Handle Head Ductile Iron (6"-10") 16A Name Plate Aluminum 16B Washer Carbon Steel 19 Gasket PTFE 30 Ball Seats PTFE 33 Cap Nut (1 Set) Carbon Steel 35 Cap Bolt (1 Set) Carbon Steel 36 Gland Bolt (1 Set) Carbon Steel 47 Thrust Washer G/F + PTFE 48 Snap Ring Carbon Steel 49 Stopper Stainless Steel 123 Handle Bolt Carbon Steel (6"-10")
Specifications Approx Net Wt
119.00
Specifications Bolt No
8
Specifications Bolt Size
3/4 inches
Specifications Carton Qty
1
Specifications Class
FCTR
Specifications Dimension D
4.92
Specifications Dimension D1
18.11
Specifications Dimension D2
6 inches
Specifications Dimension H
8.31
Specifications Dimension L
10.51
Specifications End Size
Flat Face Flanged
Specifications Material
Cast Iron
Specifications Port
Standard
Specifications Pressuretemperature
125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have Class 125 WSP/200 WOG cast iron body, CF8 stainless steel trim, blowout proof stem, PTFE seats and seals with flat face flanged ends and conforming to MSS SP-72, ASME B16.1, ASME B16.10.KITZ Code # 90 (125FCTB) Full PortKITZ Code # 91 (125FCTR) Standard Port
Standard 0
End to End ASME B16.10 Class 125/150 End Connection ASME B16.1 Class 125 Wall Thickness KITZ Conforms to MSS SP72
