FDA EPDM Sanitary Cartridge Check Valve, 1-1/2" Line Size, 316 Stainless Steel, 3.50 psi SC Style
FDA EPDM Sanitary Cartridge Check Valve, 1-1/2" Line Size, 316 Stainless Steel, 3.50 psi SC Style
SKU:SCS-cd1482
Reliable FDA EPDM Sanitary Cartridge Check Valve for backflow prevention in sanitary systems, 316 stainless steel, 3.50 psi, CE and USP Class VI compliant
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
FDA EPDM Sanitary Cartridge Check Valve, 1-1/2" Line Size, 316 Stainless Steel, 3.50 psi SC Style
$149.99
Quantity: 1
Claim Your Seller Account
FDA EPDM Sanitary Cartridge Check Valve, 1-1/2" Line Size, 316 Stainless Steel, 3.50 psi SC Style
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

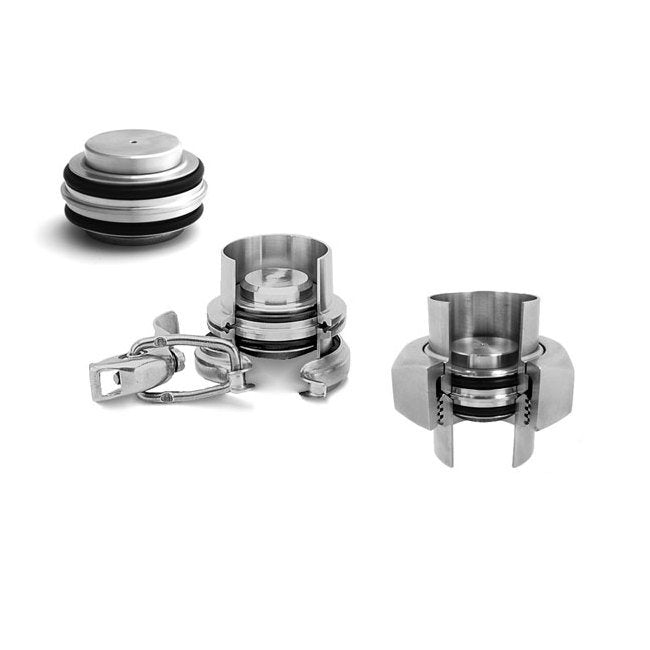

The FDA EPDM Sanitary Cartridge Check Valve offers reliable backflow prevention in sanitary systems. Made of 316 stainless steel, it fits various fittings including Alfa Laval and Cherry-Burrell. Featuring a standard cracking pressure of 3.50 psi, this valve is not only compact and economical but also complies with European Conformity (CE) and USP Class VI standards. Its versatile design allows for low pressure relief or vacuum breaker functions, making it a valuable addition to any institutional setup.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information

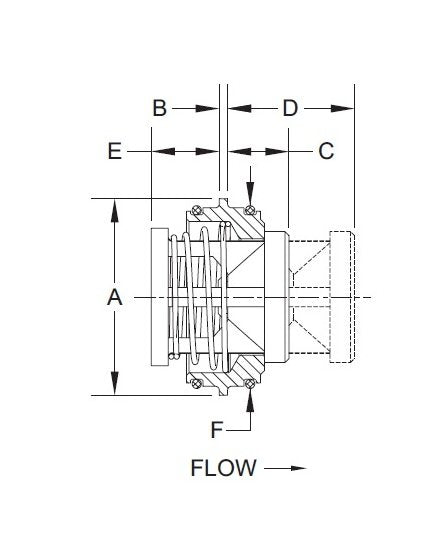

The SC valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings.The Sanitary Cartridge Valve (SC) is a stainless steel check valve for use in new or existing sanitary systems. The SC design seals on the ID of sanitary ferrules with replaceable food grade seals (Standard is FDA EPDM). The valves fits the Alfa Laval Inc. Bevel Seat and Tri-Clamp® fittings, the Waukesha Cherry Burrell® Q-Line and S-Line fittings, and others with ID dimensions equal to the "F" dimension listed in the Sizes & Dimensions. The compact SC design fits inside a single fitting and requires no additional space in the line. Its size makes it extremely economical when compared to full-bodied valves. Choose from Check-All®'s broad selection of Seat Materials Cracking Pressure Options that allow this series to be used as a check valve, relief valve, or a vacuum breaker.PED Compliance Statement: Due to the unique "insert" design of our 3S, SC, CB, TC, SI, & UV, style check valves, they do not constitute an "identifiable pressure bearing housing" as defined in PED Guideline 1/8. These styles must be installed into either ferrules or fittings to create a pressure bearing housing. Instead, they are classified as "components of pressure equipment" as defined in PED Guideline 1/8. As a result, these valves can be sold in the European Community and no CE Mark is required.
Note
USP Class VI O-Rings can be supplied with certification.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS
Specifications Certifications
European Conformity (CE) Non-PED Statement
Specifications Line Size
1-1/2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
1000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat And Outer Seals Material
"Metal-to-Metal" = MT | FDA Aflas® = FA | FDA Buna = FB | FDA Ethylene Propylene Diene Monomer (EPDM) = FE | FDA Fluoro-Elastomer (FKM) = FV | FDA Perfluoroelastomer = FK | Polytetrafluoroethylene (PTFE) = TF | USP Class VI Aflas® = UA | USP Class VI Ethylene Propylene Diene Monomer (EPDM) = UE | USP Class VI Fluoro-Elastomer (FKM) = UV | USP Class VI Silicone = US
Specifications Size Code
J
Specifications Special Options
O = Outer O-Ring Seals Same as Seat (O option not available for "Metal-to-Metal" and PTFE seats, FE will be used as standard. Consult factory for other options.) | T = FEP Encapsulated Spring
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
3.50 psi
Specifications Valve Style
SC
